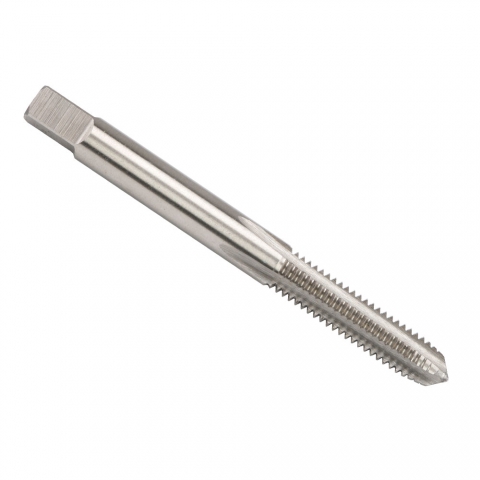

Tap, M6x1.0 Metric, Plug Style

M6x1.0 Metric Hand Tap
Plug style (3-5 chamfered threads)
High speed steel (HSS)
Utilize in through or blind hole tapping
Metric Coarse Thread

Part Number: 2940
Weight: 0.03 lb

Price: $9.95

Share this page:
http://lmscnc.com/2940

Description
Specifications

Hand taps are the most commonly used general purpose tap. They are recommended for tapping free machining steels, stainless steels, aluminum, zinc, and ductile materials.

Plug taps have 3-5 chamfered threads and are utilized in either through or blind hole tapping.

The High Speed Steel (HSS) construction gives good wear-resistance.

Specifications

Specifications
Tap Type	Hand Tap
Thread Size	M6x1.0
Class of Fit	6H
Thread Limit	D5
Number of Flutes	4
Chamfer	Plug
Material	High Speed Steel
Thread Direction	Right Hand
Thread Standard	Metric Coarse
Overall Length (Inch)	2.5000" (63.500 mm)
Thread Length (Inch)	1.0000" (25.400 mm)
