Collet Set, 7BS, Set of 7

Set of seven Brown & Sharpe 7 round collets
Hardened and precision ground
3/8"-16 drawbar thread
0.0008” (0.02 mm) maximum runout
Overall length is 3.15"

Part Number: 2999
Weight: 1.68 lb

Price: $129.95

Share this page:
http://lmscnc.com/2999

Description
Contents

Description

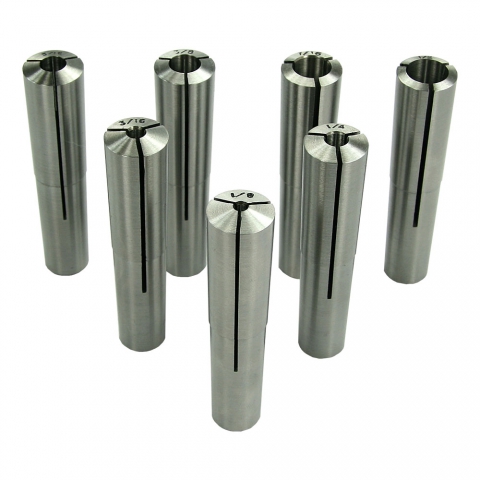

Set of seven Brown & Sharpe round collets to fit spindles with a Brown & Sharpe taper. This set ranges from 1/8" to 1/2" by 16ths (1/8", 3/16", 1/4", 5/16", 3/8", 7/16", and 1/2").

These collets are made from high-grade tool steel and are precision ground and hardened. Maximum runout is 0.0008” (0.02 mm).

Drawbar thread is 3/8"-16, the width at the top is 0.725" and the width at the bottom is 0.600". Overall length is 3.15".

Contents

This product contains the following items:
	Description	Qty
	Collet, 7BS, 1/2", P/N 2998	1
	Collet, 7BS, 1/4", P/N 2994	1
	Collet, 7BS, 1/8", P/N 2992	1
	Collet, 7BS, 3/16", P/N 2993	1
	Collet, 7BS, 3/8", P/N 2996	1
	Collet, 7BS, 5/16", P/N 2995	1
	Collet, 7BS, 7/16", P/N 2997	1
