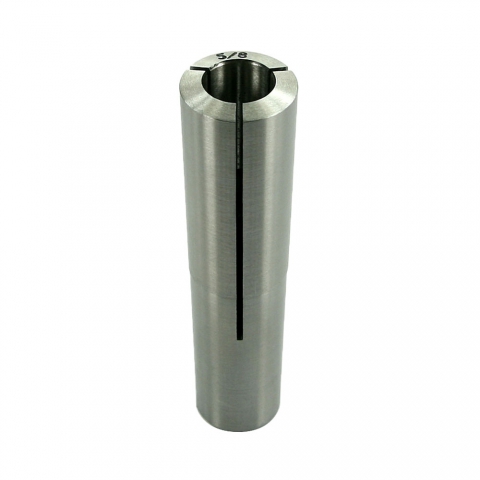

Collet, 9BS, 5/8"

5/8" Brown & Sharpe #9 taper round collet
Hardened and precision ground
1/2"-13 drawbar thread
0.0008” (0.02 mm) maximum runout
Overall length is 4.00"

Part Number: 3008
Weight: 0.85 lb

Price: $21.95

Share this page:
http://lmscnc.com/3008

Description

5/8" Brown & Sharpe #9 taper round collet to fit spindles with a Brown & Sharpe taper. This collet is made from high-grade tool steel and is precision ground and hardened. Maximum runout is 0.0008” (0.02 mm).

Drawbar thread is 1/2"-13, the width at the top is 1.067" and the width at the bottom is 0.900". Overall length is 4.00".
