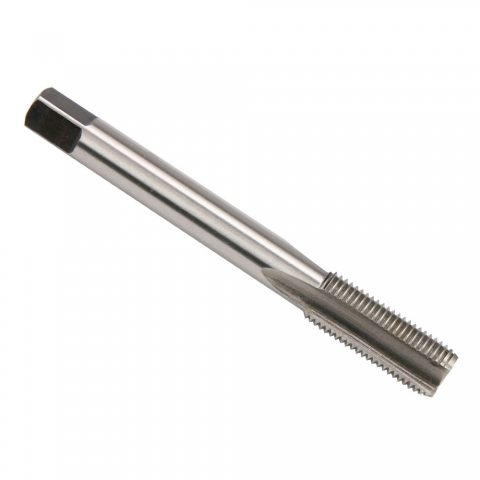

Tap, M10x1.0 Metric Fine, Plug Style, Left Hand
- M10x1.0 Metric Hand Tap
- Left Hand Thread
- Plug style (3-5 chamfered threads)
- High speed steel (HSS)
- Metric Fine Thread
Part Number: 3023
Weight: 0.08 lb
Weight: 0.08 lb
Price: $18.30
This product is currently backordered.
Estimated availability:
31-Jan-2022
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
Share this page:
http://lmscnc.com/3023
http://lmscnc.com/3023
Hand taps are the most commonly used general purpose tap. They are recommended for tapping free machining steels, stainless steels, aluminum, zinc, and ductile materials.
Plug taps have 3-5 chamfered threads and are utilized in either through or blind hole tapping.
The High Speed Steel (HSS) construction gives good wear-resistance.
This left hand thread tap for the cross slide on the mini lathe.
| Tap Type | Hand Tap |
| Thread Size | M3x0.5 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Thread Direction | Left Hand |
| Thread Standard | Metric Fine |
| Overall Length (Inch) | 3.2500" (82.550 mm) |
| Thread Length (Inch) | 0.8750" (22.225 mm) |
