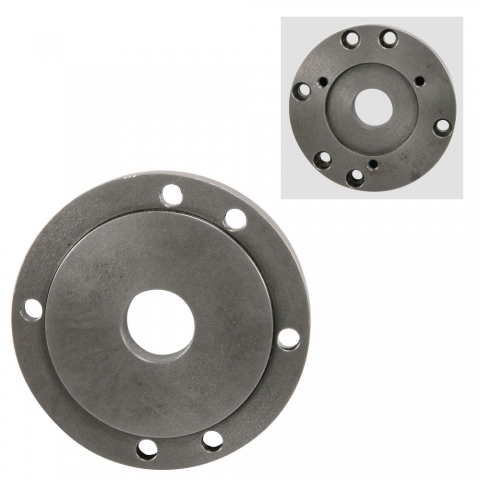

Adapter, 5" Lathe Chuck for Prazi
- Compatible with 5" 3- or 4-Jaw Lathe Chucks
- Can Use to Mount 125 mm Chuck on 100 mm Flange
Part Number: 3151
Weight: 3.03 lb
Weight: 3.03 lb
Price: $29.95
Share this page:
http://lmscnc.com/3151
http://lmscnc.com/3151
Flange to mount 125 mm chuck on 100 mm flange on Prazi lathes.
Works with Prazi 2400DLX and Wabeco 2400 lathes.
| Outside Diameter | Ø 4.9" (125 mm) |
| Center Hole | Ø 1.2" (30 mm) |
| Spindle Side Registration Recess | Ø 2.8" (70 mm) |
| Spindle Side Bold Circle | Ø 3.3" (83 mm) |
| Chuck Side Registration Boss | Ø 3.7" (95 mm) |
| Chuck Side Bolt Circle | Ø 4.3" (108 mm) |
| Chuck Mounting Holes | 6 |
