Optical Center Punch, 6 Piece
- Accuracy to 0.002"
- A bullseye lens and a cross hair lens target the punch location
- Acrylic lens magnifier power is 9x
- Includes sturdy storage case
- Includes a 120 degree tempered steel center punch and a 60 degree tempered steel center punch
Part Number: 3186
Weight: 0.66 lb
Weight: 0.66 lb
Price: $64.95
Share this page:
http://lmscnc.com/3186
http://lmscnc.com/3186
Even less experienced machinists can punch layout points to within 0.002" using this high power piloted center punch system.
The optical center punch is located over a scribed workpiece and adjusted until centered using the optics. The optical pilot is then removed and replaced by the punch. A tap marks the spot.
 |

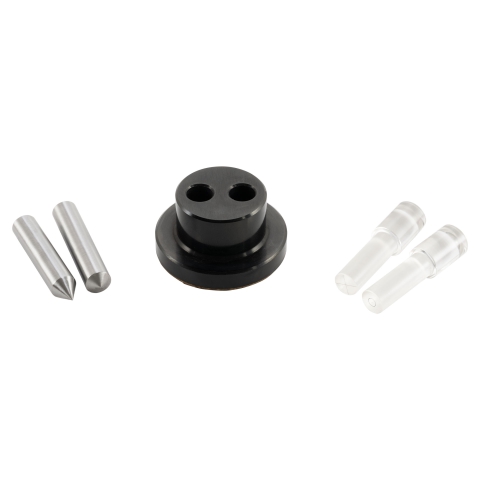

Pieces in Kit |
 |
Shown with Protecctive Case |
 |
Protecctive Cork Bottom |
 |
Two Acrylic Lens Magnifiers |
 |
Two Steel Punches |
