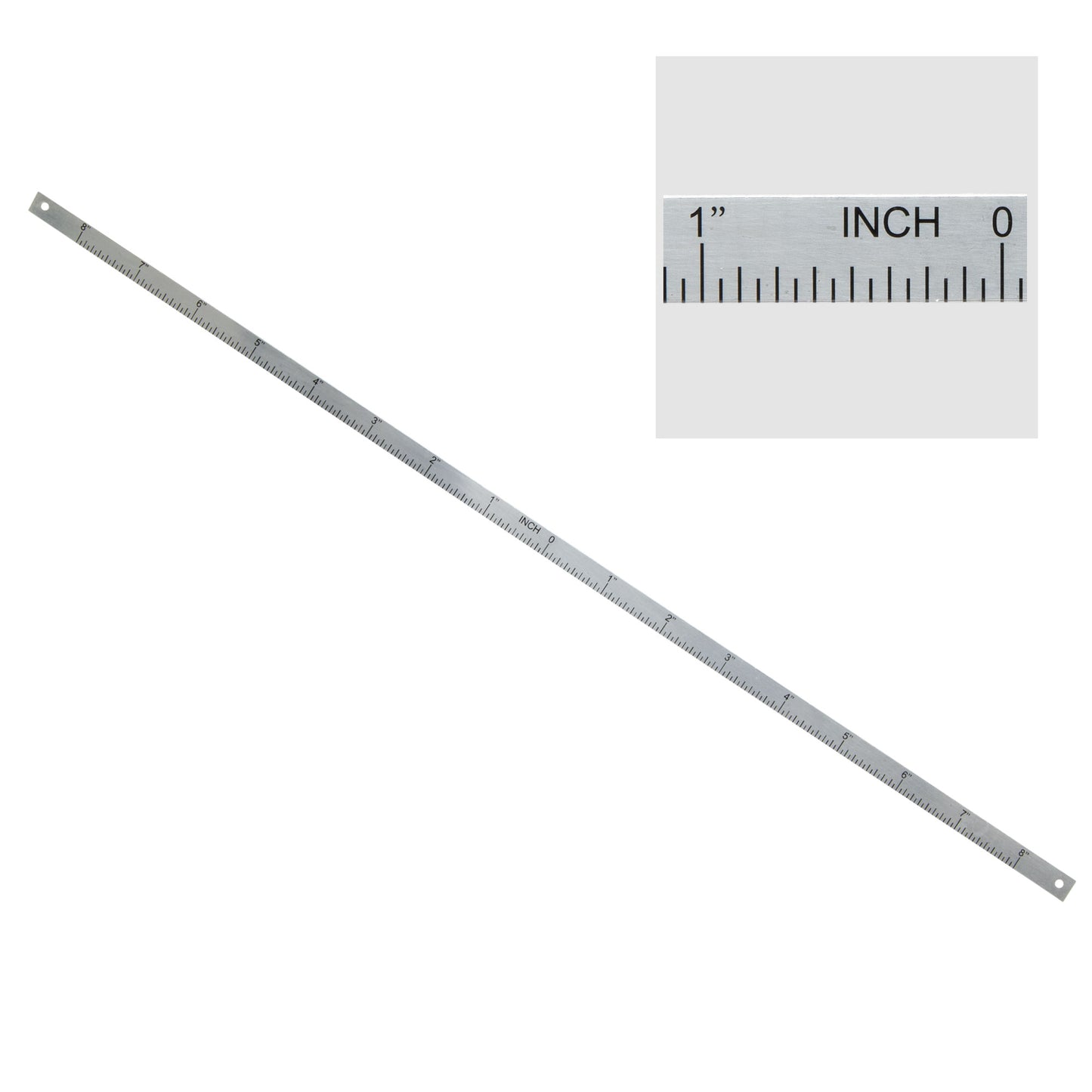

Scale, X-Axis, Small Mill CLOSEOUT
- X-Axis scale for small mills
- Range: +/- 8"
- Used on common SIEG X3/SX3 small mills
- Length: 450 mm (17.7")
- Width: 10 mm (0.4")
Small mill x-axis scale measuring table travel on common mills in the SIEG X3/SX3 families including the Grizzly G0619 Small Mill/Drill.
The scale has a range of +/- 8 inches, has a self adhesive backing and holes for rivets.
See Used On tab for reference to machines using this part and the corresponding drawing number.
|Length||17.7" (450 mm)|
|Width||0.4" (10 mm)|
|Thickness||0.04" (1.0 mm)|
In your instruction manual, this part appears on the parts list as:
