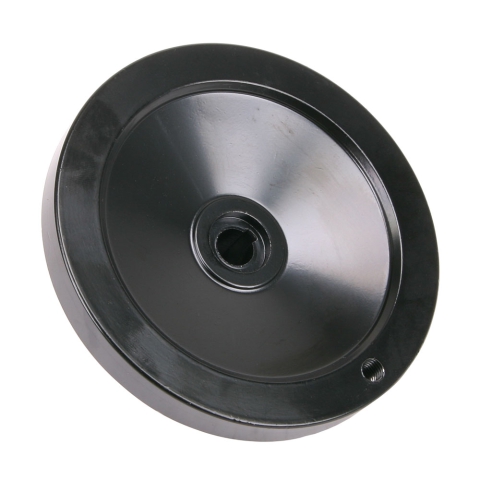

Handwheel, X3 Mill CLOSEOUT

Handwheel for small mills
Fit SIEG X3 and SX3 class of mills
120 mm outside diameter
Fits 12 mm shaft with a 4 mm key
Bore is 25 mm, handle threading is M8

Part Number: 3354
Weight: 1.77 lb

Price: $12.95

Share this page:
http://lmscnc.com/3354

This handwheel is used on the Y- and Z-axis of the X3/SX3 small mill.

The handwheel is 120 mm in diameter. It mounts on a 12 mm shaft, with a 4 mm key. The length through the bore is 25 mm. There is an M8 threaded hole for a handle.

See Used On tab for reference to machines using this handwheel and the drawing number.

Photos

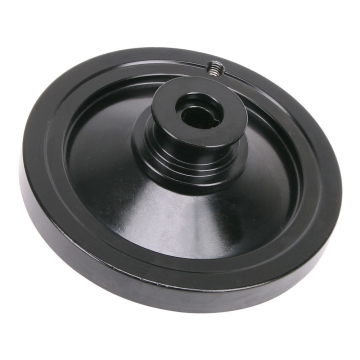

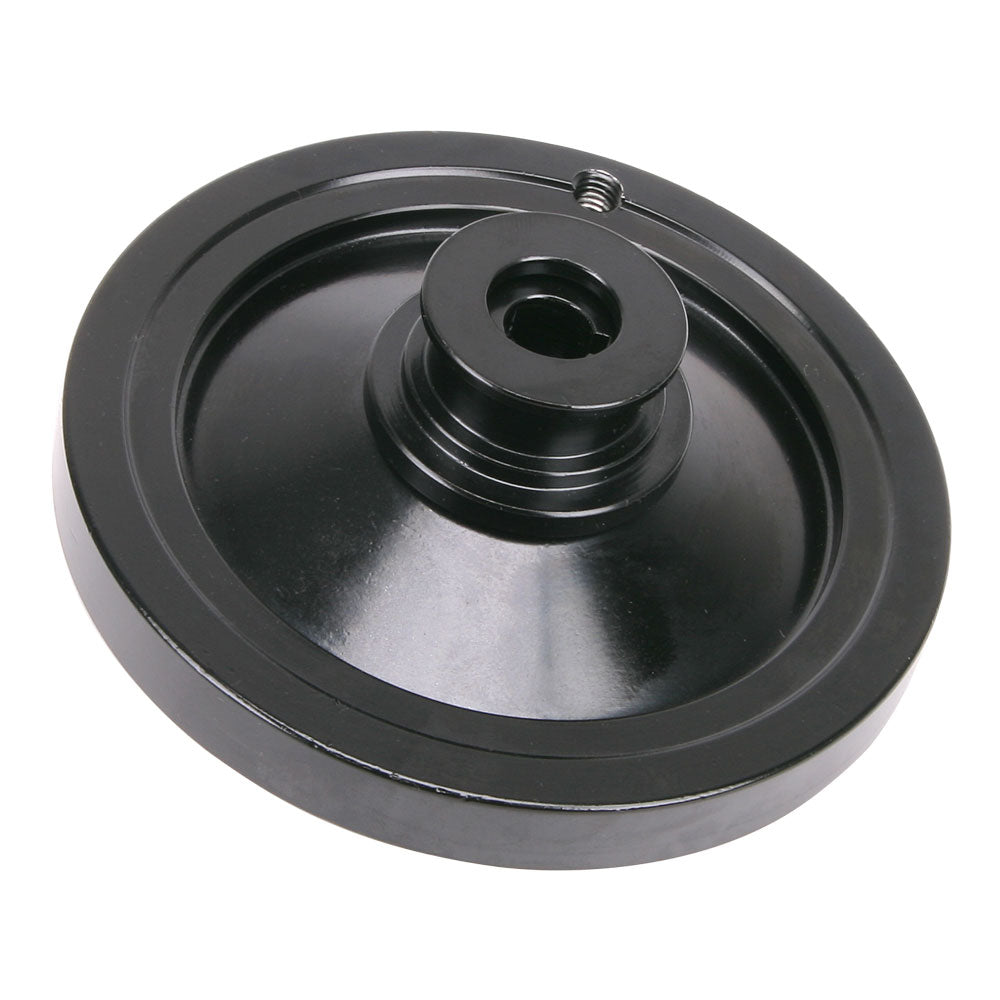

Underside View

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
145A	BusyBee CX611 Craftex Small Mill Various SX3 SIEG Small Mill
174A	BusyBee CX611 Craftex Small Mill Various SX3 SIEG Small Mill
177	Grizzly G0463 Grizzly Small Mill Harbor Freight 93885 Central Machinery Small Mill Various X3-US SIEG Small Mill Woodstock International M1110 Shop Fox Small Mill
275	Grizzly G0619 Grizzly Small Mill Various SX3 SIEG Small Mill
277	Grizzly G0619 Grizzly Small Mill Various SX3 SIEG Small Mill

Click your model to see the complete parts list.
