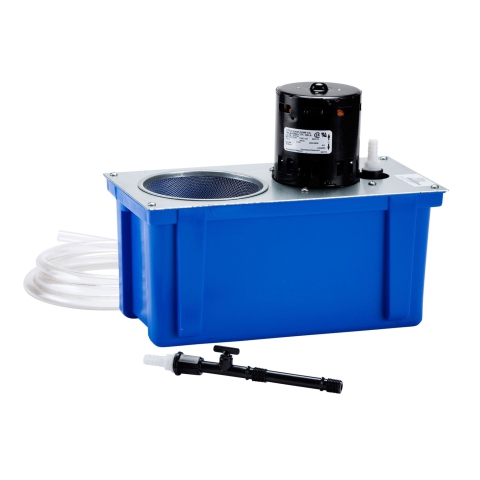

Coolant Pump, 1 Gallon, LittleGIANT VMC-1

Includes tank, pump, nozzle, and 20 ft. tubing
Delivers 108 gph @ 1ft
Flow can be regulated without harming pump
Screen and chip collector easily removed for cleaning
1 gallon polyethylene tank is oil-resistant

Part Number: 3520
Weight: 6.39 lb

$359.95 On Sale

Regularly $384.95

Share this page:
http://lmscnc.com/3520

This LittleGIANT VMC-1 coolant pump and tank unit is great for bench top milling machines and lathes, tool grinders and drill presses. It is compact (the tank holds 1 gallon) and easy to use and clean. The flow can be regulated to any desired amount and even shut off without harmful effects on the coolant pump.

Chris' Tips

Chris' Tips
Here are the pump output specifications:

Head (ft)	Flow (GPH)	Head (m)	Flow (LPH)
1	108	0.3	408.8
3	100	0.9	378.5
6	86	1.8	325.5
9	60	2.7	227.1

Here's the spec sheet for the VMC-1 Coolant Pump.

Specifications

Specifications
Capacity	108 gph @ 1'
Shut Off	11.5' (3.5 m)
Impeller	Nylon
Electrical	115 V
Tank Size	1 gallon
Tank Material	Polypropylene

Photos

"Coolant Pump
