Knob and Handwheel Kit, Mini Lathe

Anodized handwheels for apron and tailstock
Chrome levers for half-nuts, tool post and tailstock
Handwheels: 90 mm OD, 8 mm bore
Levers: M8 threading
Acron Nuts: M8 threading

Part Number: 3937
Weight: 2.10 lb

Price: $84.95

Share this page:
http://lmscnc.com/3937

The attractive handwheels are all metal, and the levers are chrome. Designed for SIEG C2, SC2 and C3 class of mini lathes as well as HiTorque mini lathes.

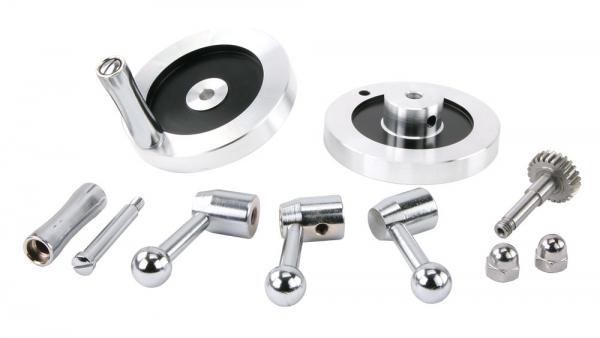

Kit contains two handwheels with handles and posts; three levers, acorn nuts and a 24 tooth drive gear.

The saddle drive gear in this kit is an upgraded version with a threaded end. This allows the handwheel to hold to the gear shaft using one of the chrome acorn nuts. In the factory version of the lathe, the hand wheel was held to the gear using a cone point set screw.

The tailstock handwheel also has an acorn nut for attachment to the tailstock screw. In this application, the chrome acorn nut simply replaces a standard M8 nut.

See the Compatibility tab for machines that work with this product.

Contents

Mini Lathe Knob and Hand Wheel Kit Content: - Two chrome hand wheels; - Two chrome handles; - Two chrome handle bolts; - Two chrome M8 acorn nuts; - Three chrome levers with M8 threading; - One upgraded 24 tooth saddle gear

Compatibility

Compatibility

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3005 7x12 Mini Lathe (Imperial)
Warco 3004 7x12 Mini Lathe (Metric)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
SIEG SC2 7x12 Mini Lathe
Micro-Mark 82710 MicroLux 7x14 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Micro-Mark 84631 MicroLux 7x16 Mini Lathe
LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
