Vise, 1.5" Screwless

Hardened and precision ground
Jaw can be opened and closed without unbolting from work surface
1.5" jaw width
Square and parallel .0002"
Overall length is 100 mm

Part Number: 3950
Weight: 1.90 lb

Price: $64.95

Share this page:
http://lmscnc.com/3950

Description
Specifications

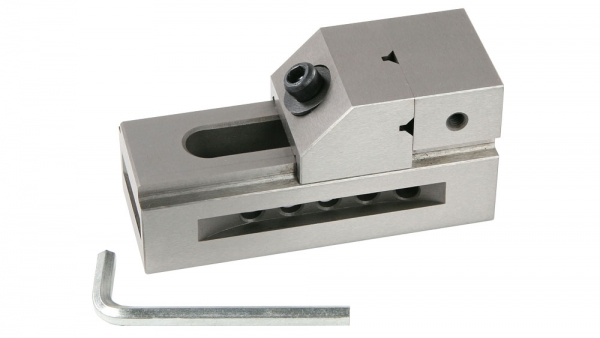

This high precision toolmakers screwless vise has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square, and parallel to 0.0002".

The jaws are 0.75" deep and open to 1.5".

The vise is 3.94" long x 1.5" wide.

Specifications

Specifications
Jaw Depth	0.75" (19.0 mm)
Maximum Jaw Opening	1.5" (38 mm)
Table to Bed	1.21" (30.7 mm)
Table to Clamping Slot	0.46" (11.7 mm)
Height	1.97" (50.0 mm)
Length	3.94" (100.1 mm)
Width	1.60" (40.6 mm)
Weight	1.9 lbs (0.9 kg)
