Wedge Set #3, Drill Chuck Removal

Removes taper mount drill chuck from arbor
For #3 and #33 Jacobs tapers

Part Number: 3983
Weight: 0.60 lb

Price: $14.95

Share this page:
http://lmscnc.com/3983

Description

Remove chucks from arbors with these handy wedges. Designed for Jacobs Taper #3 and #33 arbors.

Chris' Tips

Chris' Tips
To remove a chuck from an arbor, insert the wedges between the back of the chuck and the shoulder of the arbor (Illus. C). If the mounting taper of the arbor does not provide a shoulder, drill a cross hole through the neck of the arbor (illus. D.) and insert a cross pin. Then the wedges can be used between the chuck back and the cross pin.

Photos

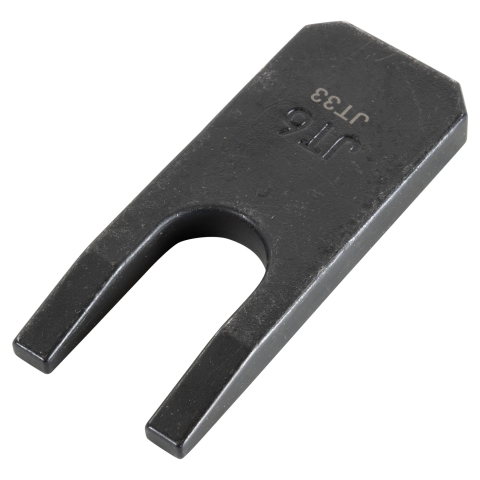

"Wedge Set #3
