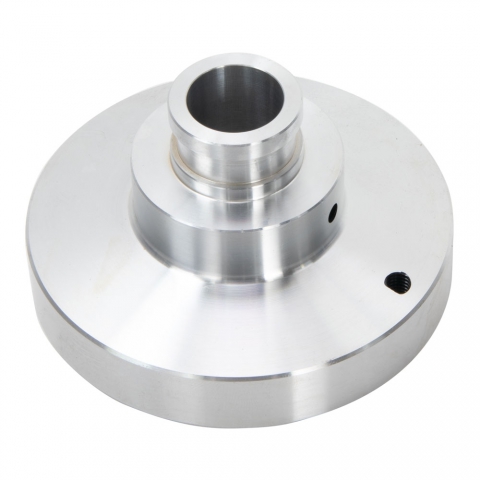

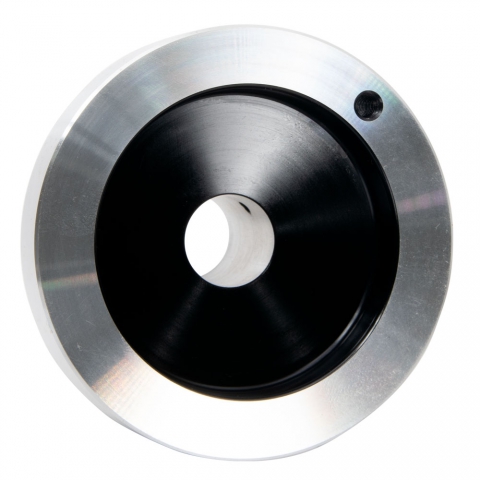

Handwheel, Main, Bench Lathe, Aluminum

Handwheel, Main, Bench Lathe, Aluminum
  • Main bench lathe handwheel, anodized aluminum
  • Fits SIEG SC4 and HiTorque deluxe bench lathes
  • 92 mm outside diameter
  • Fits 20 mm shaft with a dog clutch
  • Bore is 36 mm, handle threading is M6
Part Number: 4165
Weight: 0.58 lb

Price: $49.95

In stock
Quantity:

Main handwheel for the HiTorque Deluxe Bench Lathes and SIEG SC4 bench lathes. The hand wheel is 92 mm in diameter. It mounts on a 20 mm shaft, with a dog clutch (no key). The length through the bore is 36 mm. There is an M6 threaded hole for a handle.

See Used On tab for reference to machines using this handwheel and the drawing number.

"Hand Wheel Reverse



In your instruction manual, this part appears on the parts list as:

Item No Models
328  LittleMachineShop.com 3595 HiTorque Bench Lathe - 8.5x20
LittleMachineShop.com 7550 HiTorque Bench Lathe - 8.5x20
Click your model to see the complete parts list.
