Handwheel, Bench Lathe DRO, Aluminum

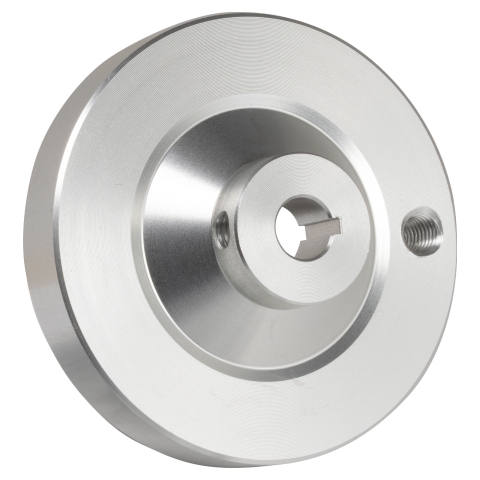

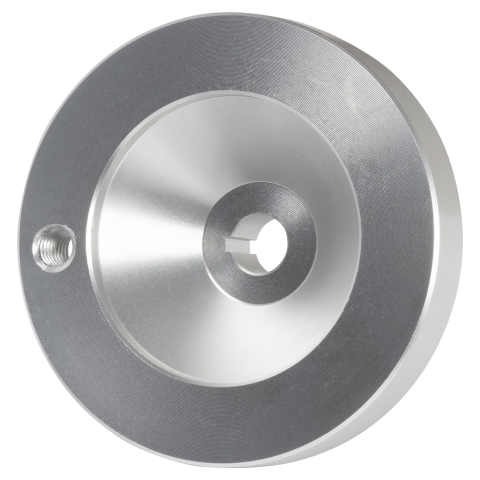

DRO handwheel for the HiTorque Deluxe Bench Lathes and SIEG SC4 bench lathes. The handwheel is 60 mm outside diameter. It mounts on a 8 mm shaft, with a 2 mm key. The length through the bore is 9 mm. There is an M6 threaded hole for a handle.

See Used On tab for reference to machines using this part and the corresponding drawing number.
