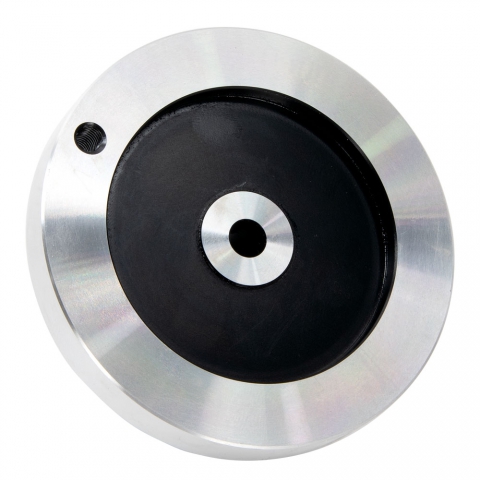

Handwheel, Tailstock, Mini Lathe, Aluminum

Anodized aluminum handwheel for mini lathe tailstock
Fits SIEG SC2 and HiTorque mini lathes with chrome hardware
90 mm outside diameter
Mounts on 8 mm shaft with a M6x12 set screw
Bore is 23 mm, handle threading is M6

Part Number: 4182
Weight: 0.38 lb

Price: $29.95

This product is currently backordered.

Estimated availability:
31-Jul-2022
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/4182

Description

Tailstock handwheel for LittleMachineShop.com HiTorque mini lathes and SIEG SC2 mini lathes with chrome hardware. The hand wheel is 90 mm outside diameter. It mounts on a 8 mm shaft and is locked into position with a M6x12 cone point set screw. The length through the bore is 23 mm. There is an M6 threaded hole for a handle.

See Used On tab for reference to machines using this part and the corresponding drawing number.

Photos

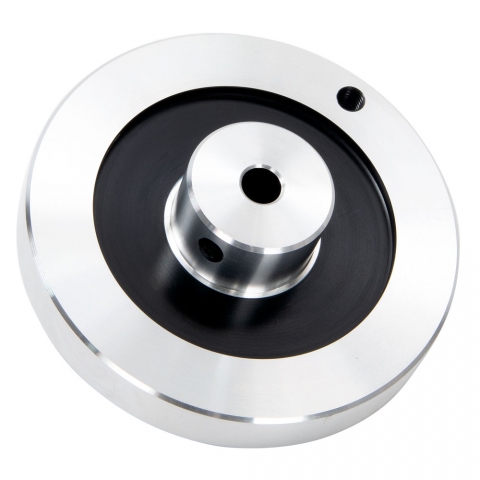

Reverse

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
65	LittleMachineshop.com 5200 HiTorque Mini Lathe - 7x16 LittleMachineShop.com 7350 HiTorque Mini Lathe - 7x16
65A	LittleMachineShop.com 4200 HiTorque Mini Lathe - 7x12

Click your model to see the complete parts list.
