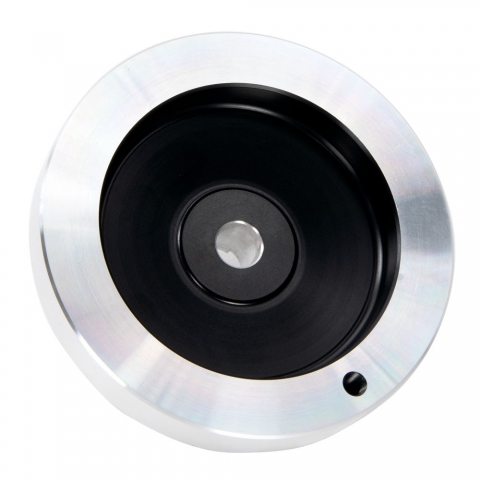

Handwheel, HiTorque Bench Mill, Aluminum, X-Axis

X-Axis handwheel for bench mill
Fits SIEG SX2LF and HiTorque 5550 bench mills
110 mm outside diameter
Fits 12 mm shaft with a dog clutch
Bore is 24 mm, handle threading is M6

Part Number: 4204
Weight: 0.76 lb

Price: $39.95

Share this page:
http://lmscnc.com/4204

X-Axis handwheel for the HiTorque Bench Mill Model 5550 (SX2LF) drawing number C38. The hand wheel is 100 mm in diameter. It mounts on a 12 mm shaft, with a dog clutch (no key). The length through the bore is 24 mm. There is an M6 threaded hole for a handle.

See Used On tab for reference to machines using this handwheel and the drawing number.

Photos

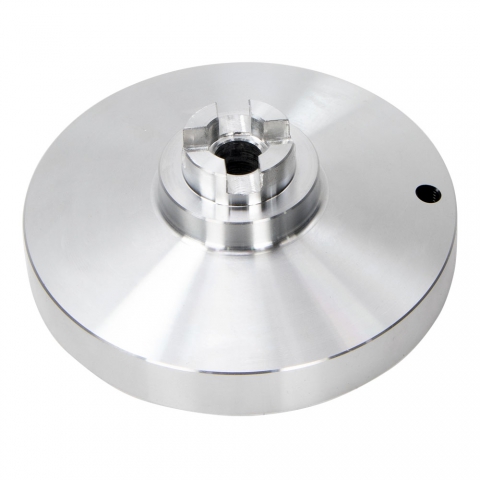

Reverse

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
C38	LittleMachineShop.com 5550 HiTorque Bench Mill Various SX2.7L-US SIEG Bench Mill LittleMachineShop.com 6550 HiTorque Bench Mill LittleMachineShop.com 6570 HiTorque Bench Mill

Click your model to see the complete parts list.
