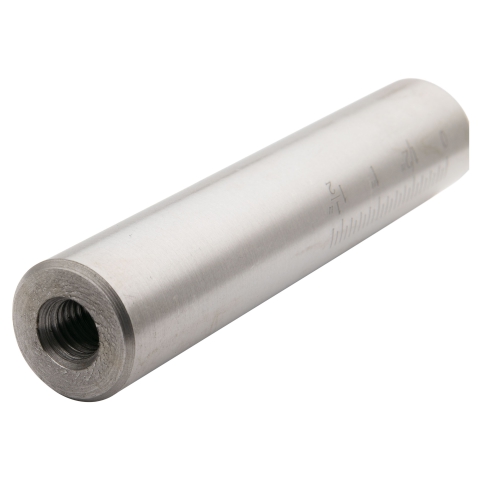

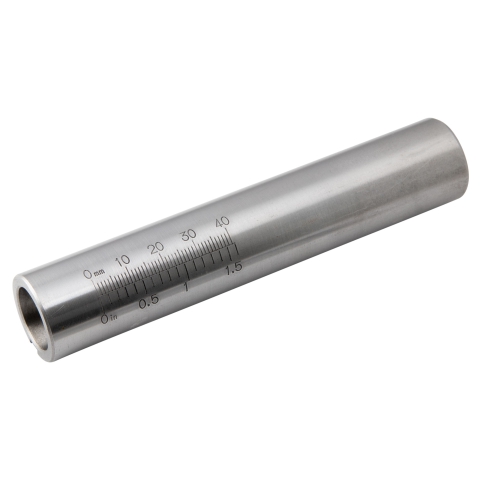

Quill, Bench Lathe
- Bench lathe quill
- #2 Morse taper bore
- Overall length 130 mm, Diameter 25 mm
- Keyway 4 mm x 77 mm
- Fits HiTorque and SIEG SC4 bench lathes
This is the quill for the tailstock on HiTorque bench lathes and SIEG SC4 bench lathes.

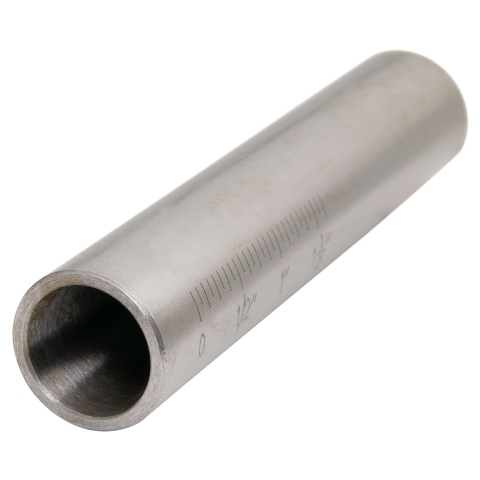

It has a #2 Morse Taper bore.

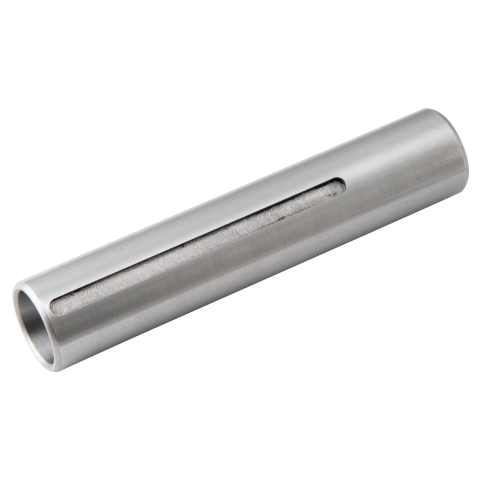

The overall length is 130 mm and the diameter is 25 mm. The underneath keyway is 4 mm x 77 mm.
See Used On tab for reference to machines using this part and the corresponding drawing number.
|Overall Length||5.12" (130.0 mm)|
|Diameter||0.98" (25.0 mm)|
|Keyway||4 mm x 77 mm|
|Bore||#2 Morse Taper|
In your instruction manual, this part appears on the parts list as:
