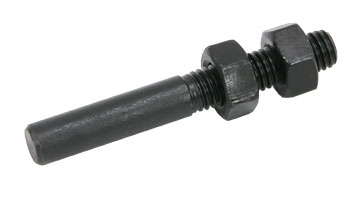

Driver, Lathe Dog, M8

Lathe Dog Driving Pin
For lathes with 100 mm (4") chuck mounting flanges
Fits M8 bolt holes

Part Number: 4477
Weight: 0.06 lb

Price: $2.95

Share this page:
http://lmscnc.com/4477

M8 lathe dog driver acts as a holding pin when using a lathe dog that has a straight tail. Bolt into 100 mm (4") faceplates that have M8 mounting holes.

Chris' Tips

Chris' Tips
The photo shows how to use a lathe dog and drive pin with the mini lathe.

Lathe dogs are the perfect solution for turning between centers. (That's where you mount a dead center in the headstock and another center -- usually a live center -- in the tailstock. You then mount the workpiece, which has a small divot machined into each end, between the centers.) To drive the workpiece, you place a lathe dog on it; the lathe dog is pushed around by a driver pin screwed in to a faceplate or the spindle, as shown above.

Sounds complicated, right? So why turn between centers instead of just chucking your workpiece?

It's very concentric, accurate (less runout than a chuck), and repeatable. That means you can remove your workpiece, measure it, test it, even flip it end for end -- and then put it right back on center.
Because of this accuracy, it's easier to blend cuts that you make from both ends.
It's easier for long or irregular workpieces that don't easily fit in a chuck.
By offsetting the tailstock, you can accurately turn tapers.
