Backplate Lathe Chuck Adapter, 5" to 4"

Fits a 5" chuck on a 4" flange

Part Number: 4771
Weight: 3.10 lb

Price: $29.95

Share this page:
http://lmscnc.com/4771

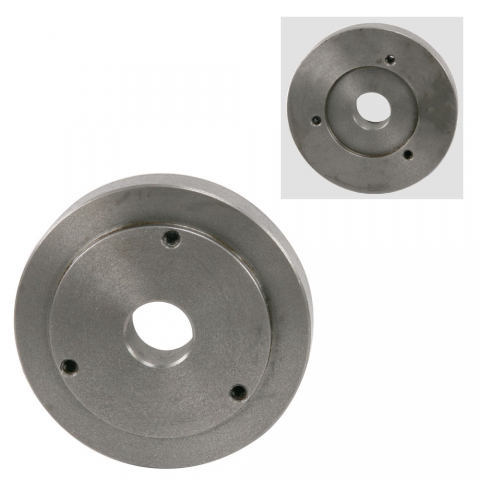

This is a semi-machined adapter plate. The side that attaches to the lathe flange is fully machined. The side on which the lathe chuck mounts is not finished.

Mount the backplate adapter on your lathe and complete machining of the chuck-mounting side. This ensures two things; that it will fit your chuck, and that it is concentric on your lathe.

Specifications

Specifications
Outside Diameter	Ø 4.9" (125 mm)
Center Hole	Ø 1.3" (32 mm)
Spindle Side Registration Recess	Ø 2.8" (72 mm)
Spindle Side Bolt Circle	Ø 3.3" (84 mm)
Chuck Side Registration Boss	Ø 3.8" (96 mm)
Chuck Mounting Holes	None

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

2337 Lathe Chuck, 3-Jaw 5"
2338 Lathe Chuck, 4-Jaw 5", Independent

This product works with lathes with a 100 mm flange chuck mount including:

Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Big Dog BD-0618Ax300 7x14 Mini Lathe
Big Dog BD-0618x300 7x14 Mini Lathe
LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
MX-8x14 Preenex (and others) 8x14 Lathe
Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
Grizzly G0768 8x16 Benchtop Lathe
LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
SIEG SC4 8.5x16 Bench Lathe
SIEG C4 8.5x16 Bench Lathe
Travers Tools OT218410 OTMT 8x16 Bench Lathe
LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
