Handwheel, Mini Mill, Cast Iron/Chrome

Handwheel, Mini Mill, Cast Iron/Chrome
  • Cast iron handwheel with chrome plated finish
  • Fits SEIG X2, SX2 and HiTorque Mini Mills
  • 100 mm outside diameter
  • Mounts on 10 mm shaft with a 4 mm keyway
  • Bore is 23 mm, handle is included
Part Number: 4789
Weight: 1.30 lb

Price: $45.95

In stock
Quantity:

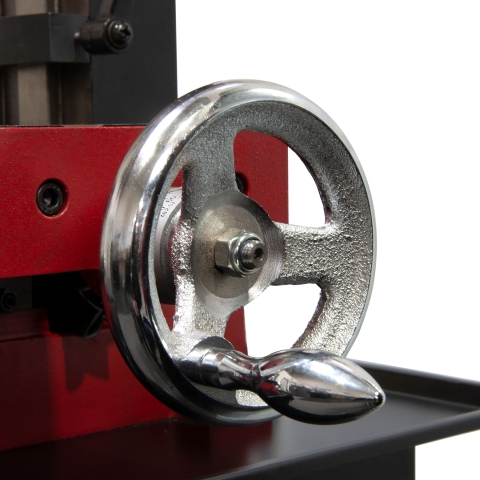

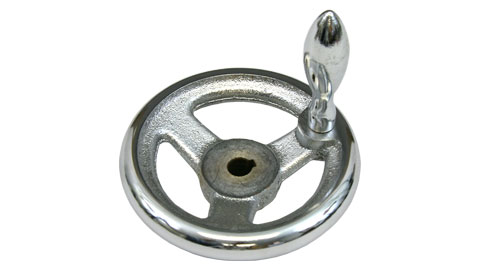

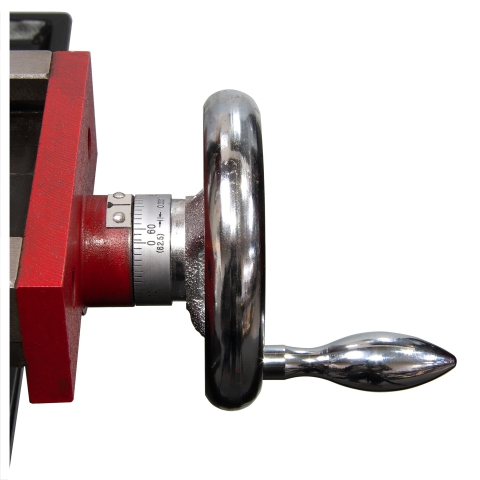

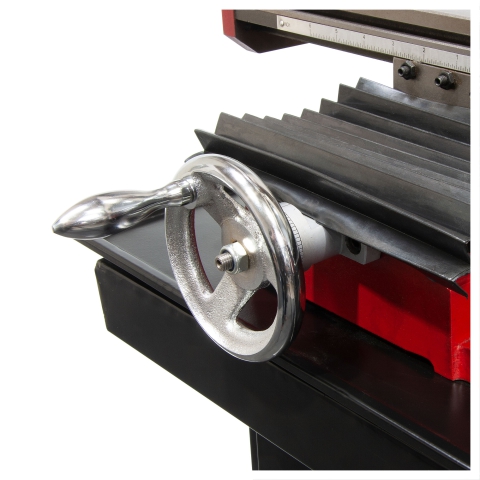

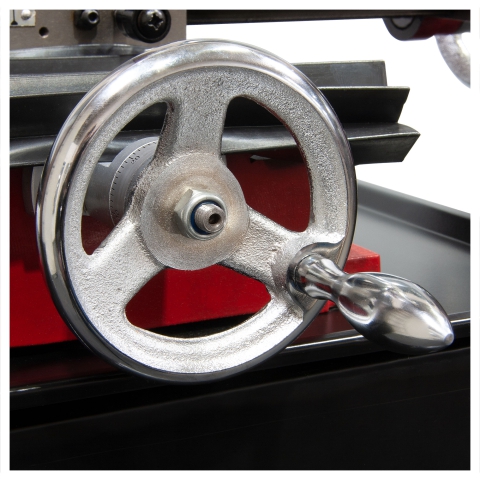

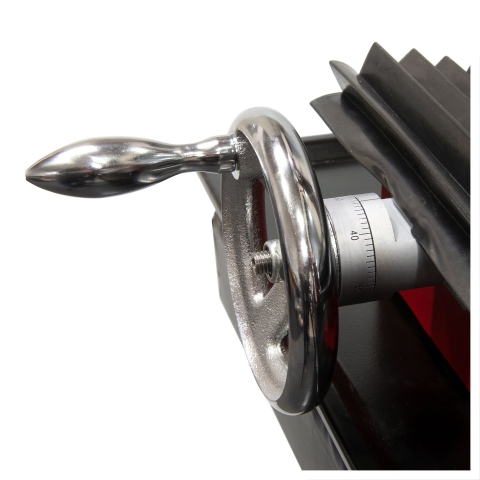

This attractive handwheel is cast iron with a polished, chrome plated rim and handle. Designed to fit SIEG X2 class of mini mills (X2, SX2, SX2LF) including the HiTorque mini mills.

The hand wheel is 100 mm outside diameter. It mounts on a 10 mm shaft and has a 4 mm keyway. The length through the bore is 23 mm. A chrome handle is included.

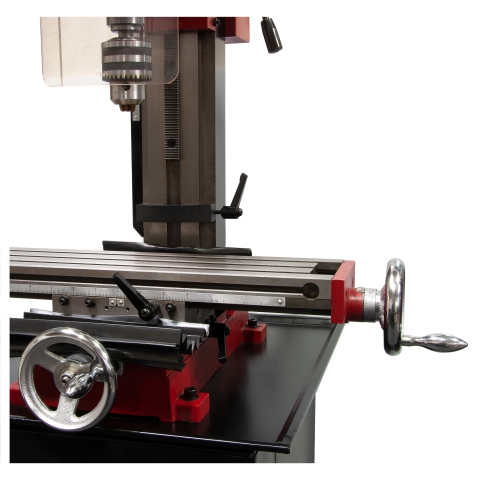

Get two to equip your mini mill on the X- and Y-axes.

See the Compatibility tab for machines that work with this product.

Compatibility

This product works with the following mills. (If your machine is not on this list, check with us before ordering.)

  •   Bolton XJ-9510 Mill/Drill
  •   Clarke CMD300 Milling Drilling Machine
  •   Grizzly G8689 Mini Milling Machine
  •   Hare & Forbes HM-10 Mill/Drill
  •   Princess Auto 8507667 Powerfist Mini Mill
  •   SIEG X2-MT3 Mini Mill
  •   Micro-Mark 82573 MicroLux Milling Machine
  •   BusyBee CX605 Craftex Mini Mill
  •   Cummins (Tools Now) 7877 Mini Mill
  •   Eastwood 32498 Mini Mill
  •   Harbor Freight 44991 Central Machinery Mill/Drill
  •   Homier 03947 Speedway Mini Mill
  •   Northern Tool 49657 KLUTCH Mini Mill
  •   Penn Tool Co XJ-9510-1 Precise Mini Mill
  •   SIEG X2-R8 Mini Mill
  •   Travers Tools OT2213 OTMT Mini Mill
  •   SIEG X2P Mini Mill
  •   LittleMachineShop.com 4962 SIEG Mini Mill
  •   SIEG X2D Mini Mill
  •   SIEG X2L Mini Mill
  •   WEN 33013 WEN Mini Mill
  •   SIEG X2LF Mini Mill
  •   BusyBee CX612 Craftex Mini Mill
  •   SIEG SX2 Mini Mill
  •   Micro-Mark 84630 MicroLux Mini Mill
  •   LittleMachineShop.com 3900 HiTorque Mini Mill
  •   SIEG SX2L Mini Mill
  •   LittleMachineShop.com 3960 HiTorque Mini Mill
  •   LittleMachineShop.com 3990 HiTorque Mini Mill
  •   LittleMachineShop.com 4190 HiTorque Mini Mill
  •   SIEG SX2LF Mini Mill
  •   Grizzly G0781 Mill/Drill
