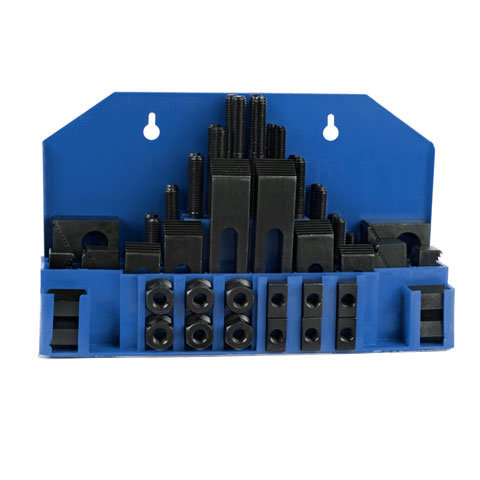

Clamping Kit, 5/8" T-Slot, Professional Grade
- Stud thread: 1/2"-13
- T-slot width at top: 5/8"
- 58 Pieces
- Made of IC45e steel, hardened to HRC30-40
- Storage rack included
Weight: 20.8 lb
Price: $104.95
http://lmscnc.com/4833
This professional grade clamping kit is manufactured at a world class factory that produces high quality US brands. Pieces are made of IC45e steel for improved strength and all parts are case hardened or heat treated to HRC30-40.
This clamping kit fits the 5/8" T-slots on the bench and knee mills mill.
The clamping kit includes 24 1/2-13 studs,12 step blocks in pairs, 6 T-slot nuts, 6 flange nuts, 4 coupling nuts, and 6 step clamps.
The stated dimension of the clamping kit is the width at the top of the T-slot.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.27" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.0 mm |
4 mm |
10 mm |
10 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M8 |
12 mm |
7 mm |
18 mm |
18 mm |
| Stud Thread | 1/2" -13 |
| Nominal T-Slot Width | 5/8" |
| T-Slot Width Range | 0.62" - 0.70" (15.7 mm - 17.8 mm) |

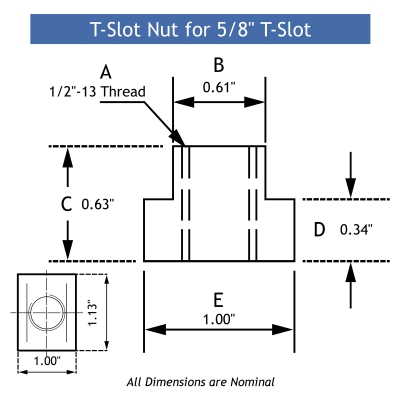

Nominal Sizes for 5/8" T-Slot Nut
 |
Riser, 2" Solid Column
Center Gage, 60 Degree
