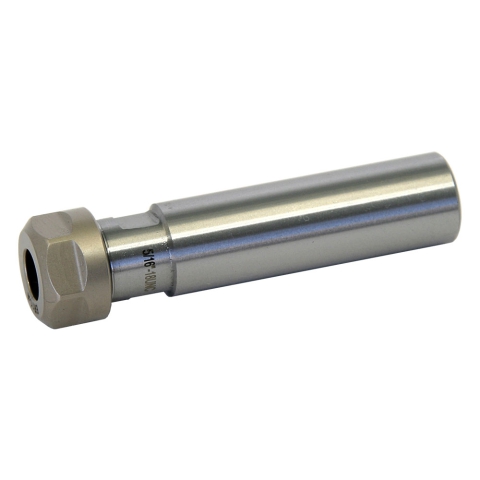

Collet Chuck, ER-11, Straight Shank, Professional Grade

5/8" x 2 1/2" shank ER-11 collet chuck
Made of 20CrMnTi alloy steel
Max runout is 0.0003"
Balanced to 18,000 RPM
Electrolysis nickle coating

Part Number: 5188
Weight: 0.20 lb

Price: $62.95

This product is currently backordered.

Estimated availability:
16-Nov-2023
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/5188

Description
Chris' Tips

Description

Collet Chuck, ER-11, Straight Shank, Professional Grade

This ER-11 collet chuck straight shank tool holder is a great tool for supporting small end mills and engravers. It is made of 20CrMnTi alloy steel and is balanced to 18,000 RPM. The maximum runout is 0.0003" (0.0076 mm).

ER-11 collets have a range of 1/32" to 1/4" (0.5 to 7.0 mm). The overall length is 3.457" (88 mm) and the width at the nut is 0.748" (19 mm).

*Collet must be assembled into a collet chuck nut before inserting into the collet chuck.

Chris' Tips

Chris' Tips
With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.
