7x16 Lathe | HiTorque Mini Lathe for Sale | LittleMachineShop  (Discontinued)

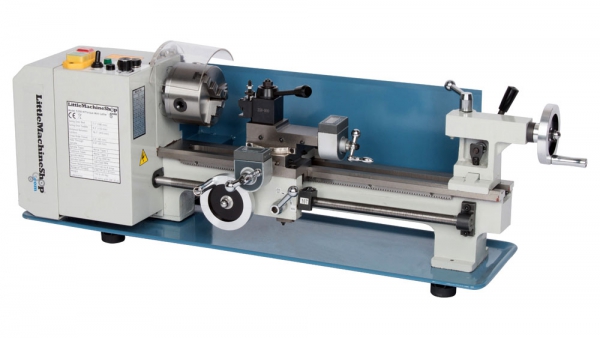

HiTorque 7x16 Deluxe Mini Lathe
  • Features of 5100 (most powerful, most low-speed torque, gearless spindle, cam-lock TS, 4" chuck)
  • Extended bed (16" between centers) for more workspace
  • Includes DRO readouts on compound rest and cross slide
  • Metal hand wheels and chrome levers
  • Includes 0XA wedge-type quick change tool post and five tool holders
Part Number: 5200  (Discontinued)
Weight: 131 lb

Price: $1,500.00


Chris Chris' Tips
DISCONTINUED - This HiTorque Mini Lathe has been replaced by the 7350 HiTorque 7x16 Deluxe Mini Lathe. All the great features of 5200, plus a tailstock DRO.

View a comparison of the specifications for our lathes.

Here are data sheets for the machines that we sell.

Here are the user's guides for our machines.

  • Mini Lathe Users Guide written by Chris Wood
  • Digital readouts on the compound rest, cross slide, and tailstock quill
  • 500 Watt output spindle motor
  • NSK brand Japanese-quality spindle bearings
  • No gears in spindle drive
  • Metal hand wheels
  • Chrome levers
  • E-stop safety power switch
  • Extended threading capability - inch and metric threads
  • Rear apron shield to keep swarf out of the mechanism
  • Cam lock tailstock with DRO
  • Quick change tool post set with five tool holders
  • Reversible lead screw for right and left hand threads
  • 4" 3-jaw chuck
  • Threading dial
Specifications
Swing Over Bed 7" (180 mm)
Swing Over Saddle 4.3" (110 mm)
Distance Between Centers 16.1" (410 mm)
Spindle Through Hole 0.8" (20 mm)
Spindle Motor Output 0.7 hp (500 Watts)
Range of Threads 4-80 TPI (0.3-8 mm)
Spindle Taper #3 Morse taper
Tailstock Taper #2 Morse taper
Spindle Speed 50 - 2500 RPM
Cross Slide Travel 2.6" (65 mm)
Power Requirements 120 V 60 Hz 8 Amps
Crated Weight 116 lbs (53 kg)
Machine Weight 91 lbs (41 kg)
Overall Dimensions (W x D x H) 31" x 10" x 12" (790 mm x 260 mm x 300 mm)
Crate Dimensions (W x D x H) 35" x 16" x 15" (900 mm x 410 mm x 380 mm)
5200 HiTorque 7x16 Deluxe Mini Lathe 5200 HiTorque 7x16 Deluxe Mini Lathe

The HiTorque Deluxe Mini Lathe comes with the following:

  • Mini Lathe Users Guide written by Chris Wood
  • 4" (100 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
  • Quick change tool post with five toolholders
  • A Morse taper #2 dead center for the tailstock
  • An 11-gear change gear set that includes a 21 tooth gear for accurate metric threading
  • Two open end wrenches
  • Four hex (Allen) wrenches
  • A plastic oil can

March 1, 2022 - Recent and unprecedented price increases in truck freight and gas prices, especially to residential addresses, has required us to increase the cost of our truck freight. We hope the future will see a return to normal and historical costs, but until then freight delivery costs have increased.

These machines ship by truck because they are simply too heavy and bulky for UPS Parcel Service. We normally ship truck orders a day or two after we receive the order. We add the following shipping cost to your order total:



Destination*Local
Continental
US

Freight Terminal (pick-up)

  • Within 50 miles / 1 hour of travel
  • Note: Not all terminals allow pickup
$150 $175

Commercial Address & Limited Access Sites

  • Set hours / No delivery appointment
  • Includes limited access (e.g. Schools, Military, Gov. Bldgs)
$99 $175

**Liftgate: Add liftgate if forklift or loading dock is not available onsite.

  + $75

Residential Address

  • Includes delivery appointment and liftgage
  • for ALL Residential businesses
$99 $270



*Local refers to the parts of Southern California served by Hollywood Delivery Service.

**Liftgate service is included in local delivery and residential delivery. A loading dock or forklift is assumed in commercial deliveries. If these are not available, please add this extra service.



Additional Notes

  • Contact and delivery. Ensure you choose the correct type of delivery, have a dedicated contact person/number, and are ready on day of delivery. Freight companies charge an additional fee if delivery exceeds 30 minutes.

  • Only one shipping charge for entire pallet (up to 700 pounds total). The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second machine, stand, tooling, and accessories.
  • A "commercial address" has a sign with company name, a public entrance and posted hours of operation. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.

  • A "limited access" designation is required for "Secured Locations" (schools, colleges, universities, university hospitals, military bases, government facilities, etc). Please provide accurate details on delivery in special instructions.

  • "Terminal Pickup" allows for pickup at local terminal. If there is not a terminal within 50 miles (or 1 hour), we will confirm with you that you still want Terminal Pickup. Terminals tend to be near highways (usually miltiple intersecting) and industrial centers. Only certain terminals allow pick-up.

  • "Residential delivery" does not include moving machine into home/garage/workshop or any setup. Delivery is to start of driveway on the street that the delivery truck can access. (See inside delivery below.)



For delivery to Alaska, Hawaii, or Puerto Rico

We will check with several trucking companies to get the best price and then call for your approval before we ship.



Canadian Shipments

Truck Freight shipping to Canada involves 3 distinct charges in addition to the product costs. (All amounts are in US Dollars, see the current mid-market exchange rate.)

  1. Canadian Provincial Taxes (GST, PST, HST) depending on which province the shipment is going to. This will be 5% - 15% added to total sales amount depending on province (Canadian Sales Tax).

  2. Hemisphere Customs Brokerage which handles all customs clearance requirements. This is a flat fee of $108 on any shipment.

  3. Truck Freight from Southern California to destination in Canada. This is generally $300-$500 for residential liftgate delivery and appointment for single machine + tooling orders. Delivery to a terminal for pick-up or a commercial location with loading capabilities can reduce this cost substantially.



Quotes

To get a quotation that includes the shipping costs, add the products you want to the shopping cart and continue the checkout process until you reach the Payment page. On the Payment page, select the Quotation option. We will add the shipping costs and return a complete quotation to you within one business day.



Inside Delivery

Some carriers offer Inside Delivery which gets the machine inside one doorway or into your garage. If you select this we will confirm availability before shipping:

Inside DeliveryLocalContinental US

Gets the machine inside 1 threshold
NO stairs, NO gravel, NO tight corners, etc.

This is simply pushing pallet jack to move crate a little closer to destination or up driveway into garage.
NO Uncrating. NO Setup.

Once shipment in transit carrier can not change service or refund charge. CALL IF QUESTIONS...

$75 $100
