Angle Scale, Compound Rest, Bench Lathe
- Angle scale, bench lathe compound rest
- Range: +/- 50 degrees
- Used on HiTorque bench lathes and SIEG SC4 lathes
- Length: 85 mm (3.3")
- Width: 8 mm (0.31")
Part Number: 5289
Weight: 0.01 lb
Weight: 0.01 lb
Price: $1.67
Share this page:
http://lmscnc.com/5289
http://lmscnc.com/5289

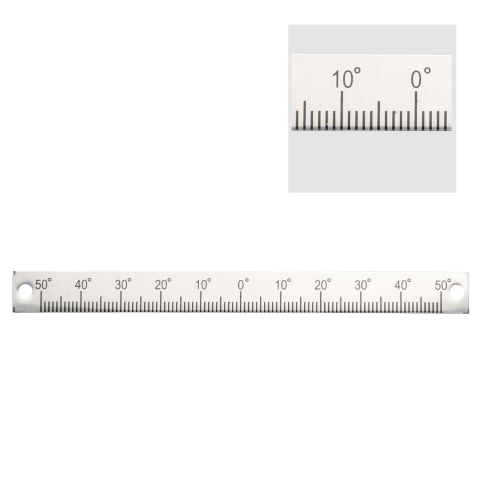

Scale indicating degrees of rotation of the compound rest on HiTorque bench lathes and SIEG SC4 lathes.
The scale has a range of +/- 50 degrees, has a self adhesive backing and holes for rivets.
See Used On tab for reference to machines using this part and the corresponding drawing number.
| Length | 3.3" (85 mm) |
| Width | 0.31" (8.0 mm) |
| Thickness | 0.04" (1.0 mm) |
In your instruction manual, this part appears on the parts list as:
