Gage Block Set, Rectangular, 81 Pieces
- No. of Blocks - 81pc
- Made of the highest quality tool steel
- Surface hardness: HRC 64
- Grade AS-2 (B) (+/- 50 millionths)

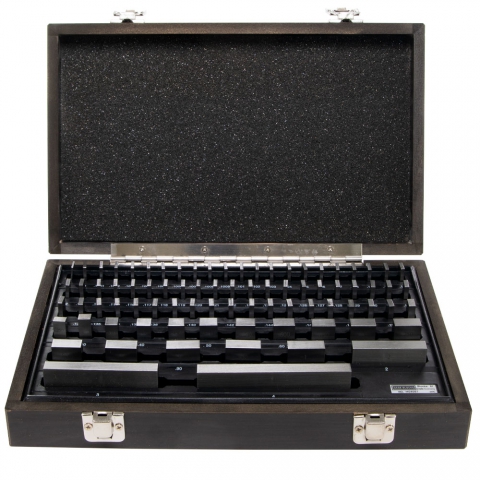

- With fitted wooden case with sizes labeled
Part Number: 5380
Weight: 6.03 lb
Weight: 6.03 lb
Price: $174.95
Share this page:
http://lmscnc.com/5380
http://lmscnc.com/5380
Blocks Included: 9 Blocks: .1001" thru .1009" step of .0001", 49 Blocks: .101" thru .149" step of .001", 19 Blocks: .050" thru .950" step of .050", 4 Blocks: 1.000" thru 4.000" step of 1.000".
Meets or exceeds Federal GGG-G-15C. All calibration conforms to:MIL-STD 45662A, GGG-G-15C, ISO/IEC 17025 Accredited, ISO 9000, 10012-1, ANSI-NCSL Z540-1, ISO GUIDE 25 Certified. Complete with manufacturer's calibration or certificate.
 |
