Clamping Kit, 3/8" T-Slot
- Nuts fit 3/8" T-Slots
- Stud thread: 5/16"-18
- 58 Pieces
- All parts are heat treated
- Storage rack included
Weight: 11.2 lb
Price: $69.95
http://lmscnc.com/5491
This clamping kit fits the 3/8" T-slots on the Grizzly G0758 mill. Use this kit for mills with 10 mm T-slots.
The clamping kit includes 24 5/16"-18 studs, 12 step blocks in pairs, 6 T-slot nuts, 6 flange nuts, 4 coupling nuts, and 6 step clamps.
Comes in a wall mount rack.
The stated dimension of the clamping kit is the width at the top of the T-slot.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.27" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.0 mm |
4 mm |
10 mm |
10 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M8 |
12 mm |
7 mm |
18 mm |
18 mm |
| Stud Thread | 5/16" -18 |
| Nominal T-Slot Width | 3/8" |
| T-Slot Width Range | 0.37" - 0.42" (9.4 mm - 10.7 mm) |

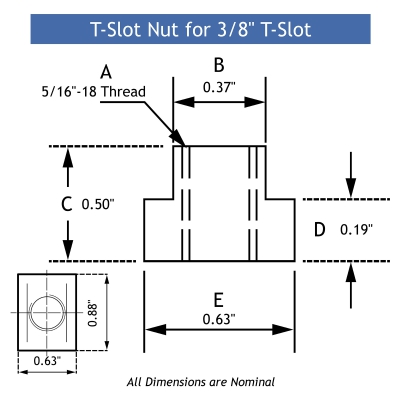

Nominal Sizes for 3/8" T-Slot Nut
 |
Compatibility
This product works with mills with a 0.37 to 0.42 inch T-slot width including:
- Grizzly G0758 Mill/Drill
- BusyBee CX705 Craftex Lathe Mill Combo
- Grizzly G0516 Lathe Mill Combo
- SIEG M6 Multi-purpose Machine
HiTorque 4190 Deluxe Mini Mill
Lathe Cover, Mini Lathe
