Read Head, Bluetooth DRO Magnetic

Part Number: 5499
Weight: 0.19 lb

Price: $134.95

Share this page:
http://lmscnc.com/5499

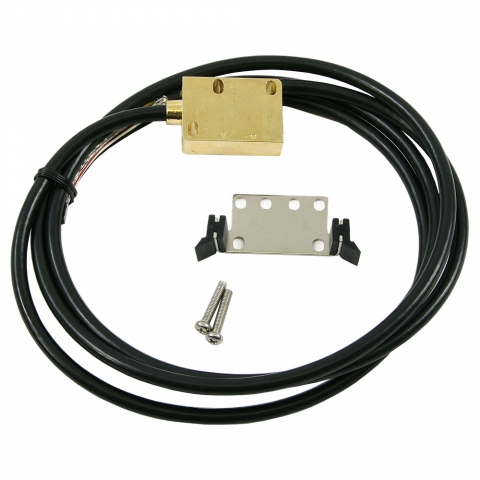

This is a read head for the Bluetooth DRO system. Get one of these for each axis you need.

The cable is one meter long. Includes scale wiper.

See Used On tab for reference to machines using this part and the corresponding drawing number.

Chris' Tips
Here are installation instructions for the Universal Bluetooth DRO.

What's it take to assemble a DRO?

P/N	Item
5498	Scale, Magnetic 1 Meter	One meter is usually enough for small mills. See Measuring for Scales below.
5499	Read Head, Magnetic	Get as many of these as you have axes on your machine.
5501	Transceiver, Bluetooth	This is the "sender" that talks to your Android Bluetooth phone or tablet.
5513	Android Tablet	Any Android phone or tablet works as long as it has Bluetooth capability.

Screenshots of Magnetic Read head

	Read head detail
	Read head in mounting bracket
	Typical mounting of read head

In your instruction manual, this part appears on the parts list as:

Item No	Models
203	LittleMachineShop.com 4190 HiTorque Mini Mill
207	LittleMachineShop.com 6450 HiTorque Mini Mill
438	LittleMachineShop.com 7550 HiTorque Bench Lathe - 8.5x20
F02	LittleMachineShop.com 6750 HiTorque Large Bench Mill
F05	LittleMachineShop.com 5550 HiTorque Bench Mill Various SX2.7L-US SIEG Bench Mill LittleMachineShop.com 6550 HiTorque Bench Mill LittleMachineShop.com 6570 HiTorque Bench Mill

Click your model to see the complete parts list.
