HiTorque Bench Mill 5500 | Benchtop Mill for Sale  (Discontinued)

HiTorque Bench Mill
  • Larger than mini mills
  • 750 watt (1 hp) brushless DC variable speed drive
  • No gears in spindle drive
  • R8 spindle and drill chuck
  • Tapping mode for reversing taps out
Part Number: 5500  (Discontinued)
Weight: 262 lb

Price: $1,848.14


Chris Chris' Tips
DISCONTINUED - This HiTorque Bench Mill has been replaced by the 6500 HiTorque Bench Mill. All the great features of 5500, with a new, improved control panel.

You can compare the specifications for our mills.

Frank Hoose from Mini-Lathe.com has a multi-part review of this mill.

Here are data sheets for the machines that we sell.

Here are the user's guides for our machines.

  • 750 Watt (1 hp) brushless DC spindle drive
  • R8 Spindle for wide tool availability
  • NSK brand Japanese-quality spindle bearings
  • 0.001" Graduated dials, 0.100" per turn
  • Digital position readout on the quill reads in inches and mm
  • Large X-Y table with attractive anodized handwheels
  • Tapping mode for reversing taps out
  • Solid rectangular column for rigidity
  • Dovetail column maintains head alignment at any height
  • E-stop safety power switch
  • Forward and Reverse modes on the power panel
  • Spindle speed display
  • Spindle fine feed and position lock
  • Fine feed on Z-axis for precise control
  • Adjustable gibs on all dovetail ways
  • Includes R8 to 33JT drill chuck arbor and drill chuck
Specifications
End Milling Capacity 0.6" (16 mm)
Face Milling Capacity 2.0" (50 mm)
Drilling Capacity 0.8" (20 mm)
Table Size 23.4" x 5.5" (595 mm x 140 mm)
T-Slots 3 slots 0.47" (12.0 mm) wide
X-Axis Travel 15.6" (395 mm)
Y-Axis Travel 6.7" (170 mm)
Z-Axis Travel 11.6" (295 mm)
Throat 7.5" (190 mm)
X- and Y-Axis Feed Screws 0.100" (2.54 mm) per rotation
Quill Travel 2.8" (71 mm)
Positioning Accuracy 0.0004" (0.010 mm)
Spindle Taper R8
Spindle Motor 1.01 hp (750 Watts)
Spindle Speed 0 - 2000 RPM
Power Requirements 120 V 60 Hz 10 Amps
Machine Weight 207 lbs (94 kg)
Base Dimensions (W x D) 9.1" x 16.9" (230 mm x 430 mm)
Mounting Holes Center to Center (W x D) 8.27" x 12.01" (210.0 mm x 305.0 mm)
Overall Dimensions (W x D x H) 28.9" x 25.0" x 28.5" (735 mm x 635 mm x 725 mm)
Crated Weight 262 lbs (119 kg)
Crate Dimensions (W x D x H) 32.0" x 28.0" x 35.5" (813 mm x 711 mm x 902 mm)

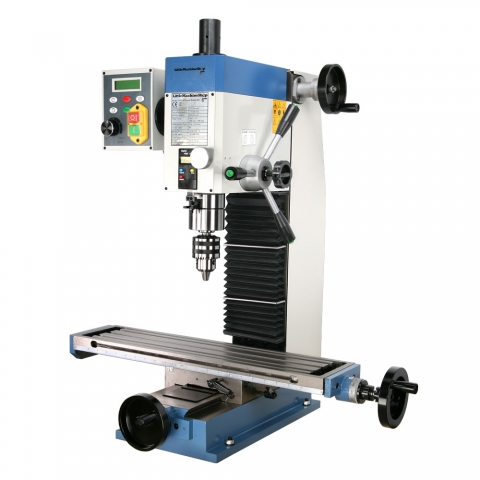

5500 HiTorque Bench Mill 5500 HiTorque Bench Mill

HiTorque Bench Mill Front View Front View

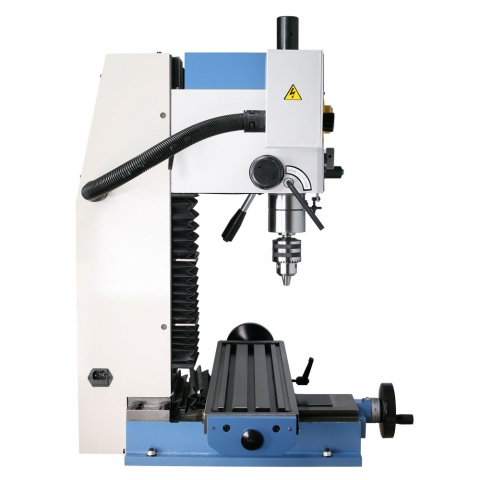

HiTorque Bench Mill Side View Side View

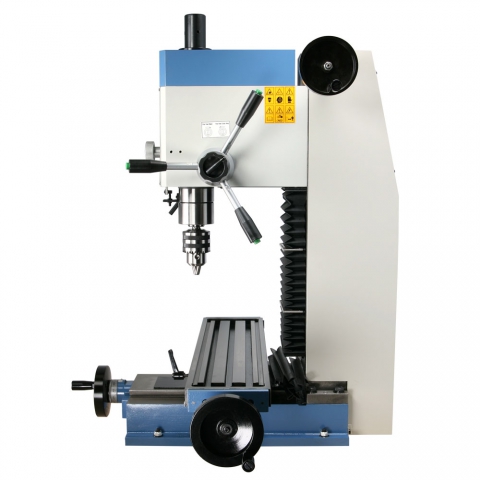

HiTorque Bench Mill Side View Side View

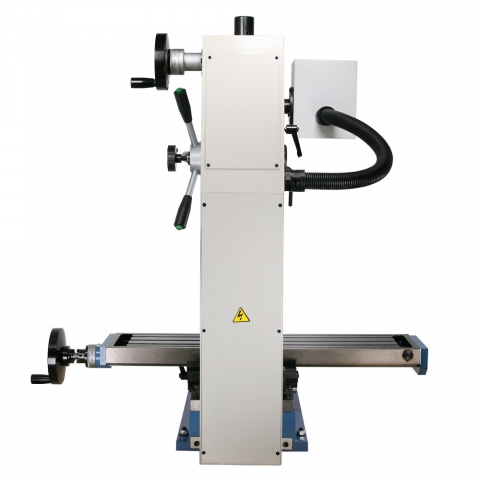

HiTorque Bench Mill Rear View Rear View

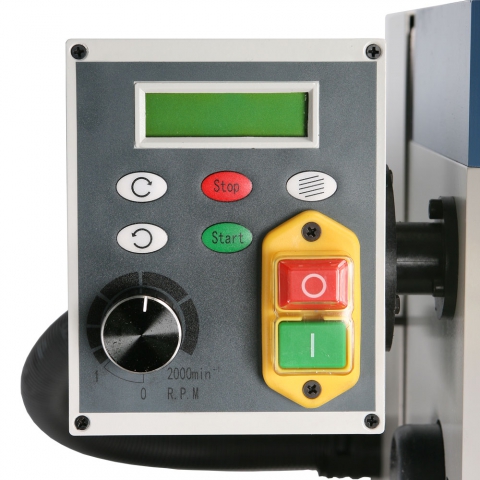

HiTorque Bench Mill Control Panel Control Panel

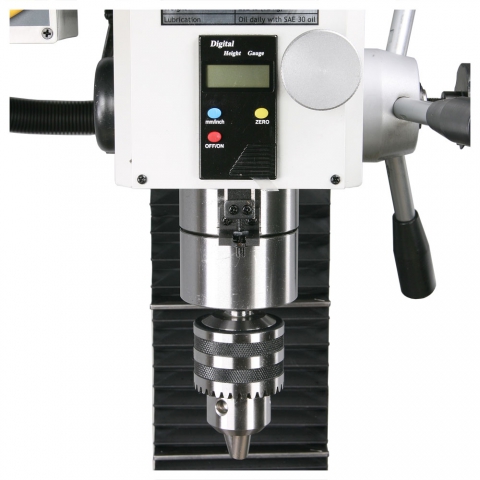

"HiTorque Bench Mill Digital Height Gauge Digital Height Gauge, Fine Feed and Spindle

The HiTorque Bench Mill comes with the following:

  • Bench Mill Users Guide
  • One 1/2" drill chuck and R8 arbor
  • Two T-slot nuts
  • Three end wrenches
  • Five hex (Allen) wrenches
  • One spanner wrench
  • Oil can (plastic)
