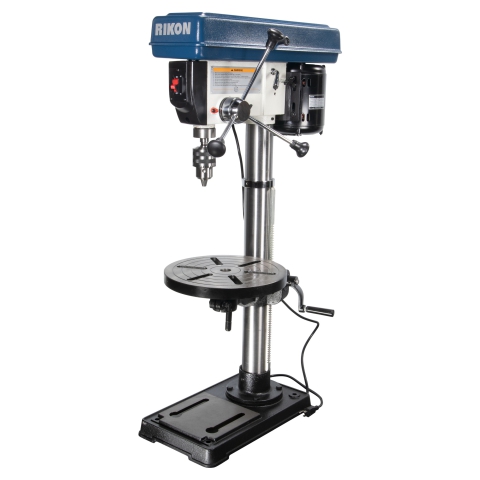

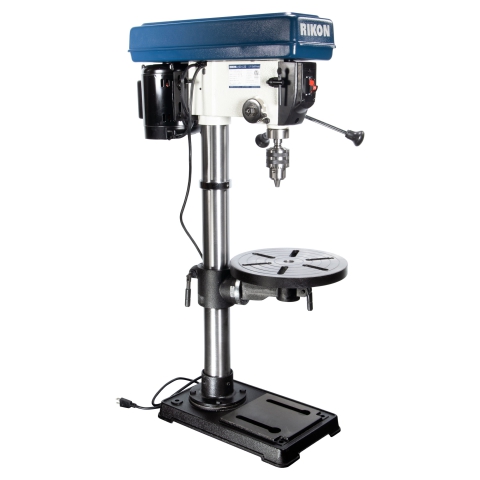

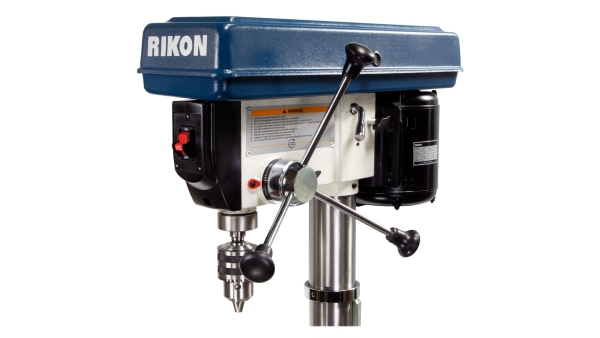

Drill Press, 13" Bench Top, 16-Speed

Bench top drill press
13" Swing
16 Speeds from 220 to 3600
#2 Morse taper spindle
5/8" Drill chuck

Part Number: 5540
Weight: 98.0 lb

Price: $494.99

Share this page:
http://lmscnc.com/5540

This is a versatile drill press for the home shop. With 13" swing and 16 speeds it can handle materials from wood, plastic, and most metals, including stainless steel.

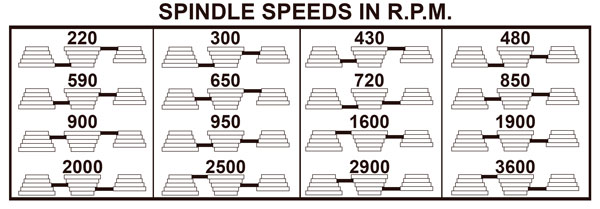

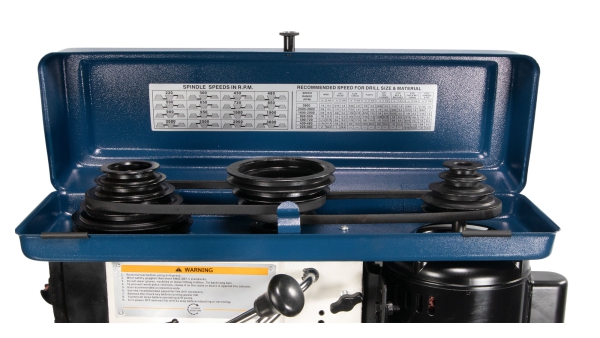

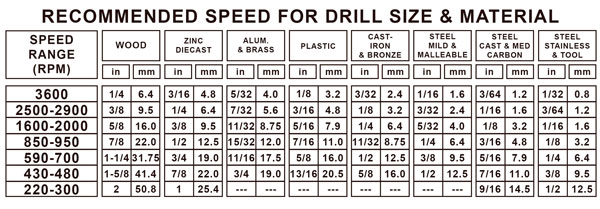

The 16 spindle speeds are 220, 300, 430, 480, 590, 650, 720, 850, 900, 950, 1600, 1900, 2000, 2500, 2900, and 3600 RPM.

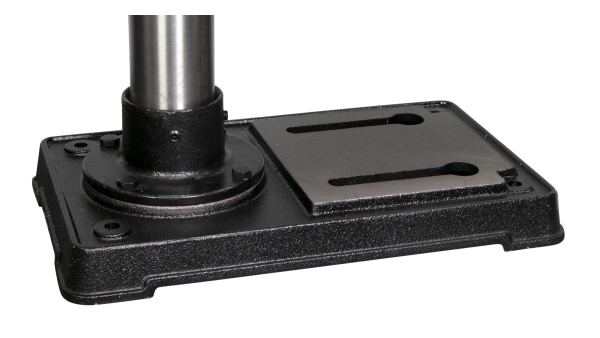

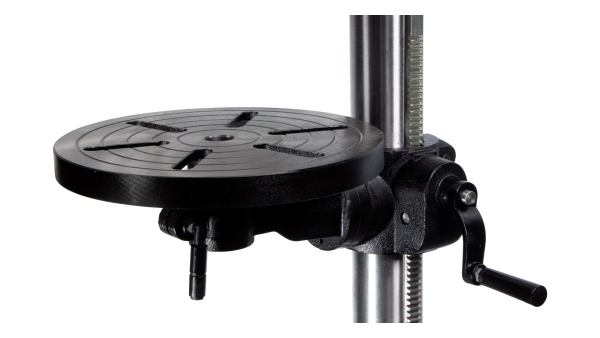

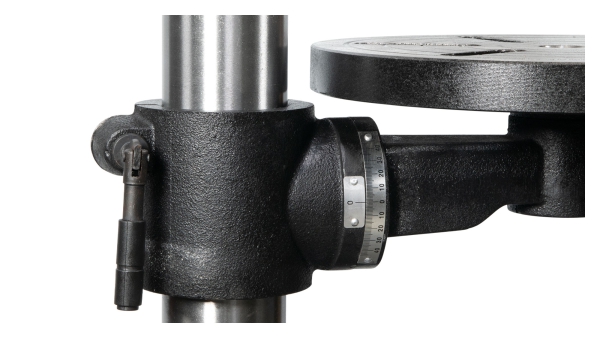

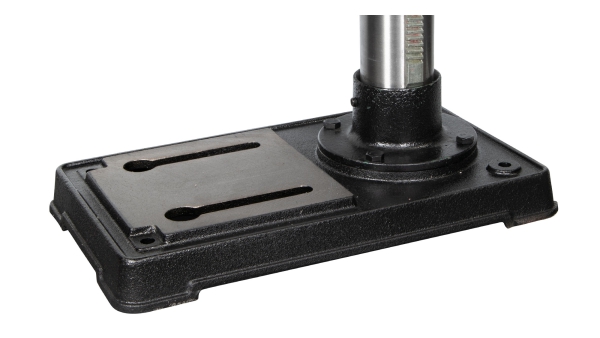

The large round table (11 13/16" diameter) tilts 45 degrees either way and raises and lowers with a rack and pinion. The base is made from sturdy cast iron with a wide footprint for stability (17 3/4" x 10 1/2").

There is an adjustable depth quill stop with a gage.

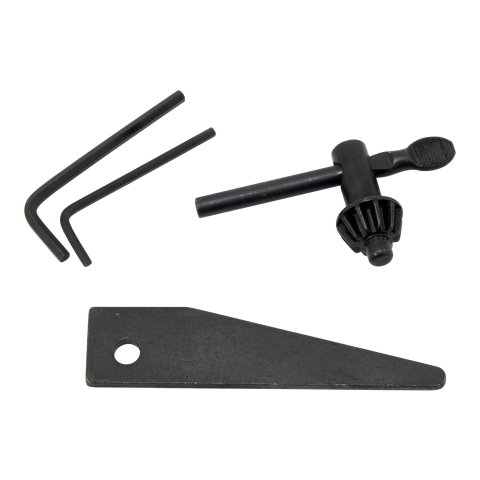

Included are the drill chuck with key, a drill chuck arbor, and a drift key for chuck removal from the spindle.

Specifications

Specifications
Drilling Capacity	0.625" (15.88 mm)
Table Size	11.188" (284.16 mm) Diameter
Table Tilting Range	45°-0°-45°
Table Rotates	360°
Spindle Travel	3.125" (79.38 mm)
Swing	13.0" (330 mm)
Quill Diameter	2.188" (55.56 mm)
Column Diameter	2.875" (73.02 mm)
Maximum Chuck to Table	16.25" (412.8 mm)
Maximum Chuck to Base	25.625" (650.88 mm)
Drill Chuck	0.100" - 0.625" (2.54 mm - 15.88 mm)
Spindle Taper	#2 Morse Taper
Chuck Taper	#3 Jacobs Taper
Motor	0.5 hp (373 Watts)
Motor Speed (No Load)	1720 RPM
Spindle Speeds	16 Speeds 220 - 3600 RPM
Power Requirements	120 V 60 Hz 7.5 Amps
Height	42" (1067 mm)
Base Dimensions (W x D)	17.75" x 10.50" (450.8 mm x 266.7 mm)
Machine Weight	102 lbs (46 kg)
Boxed Weight	112 lbs (51 kg)
Carton Dimensions	35.0" x 19.5" x 11.0" (889 mm x 495 mm x 279 mm)
