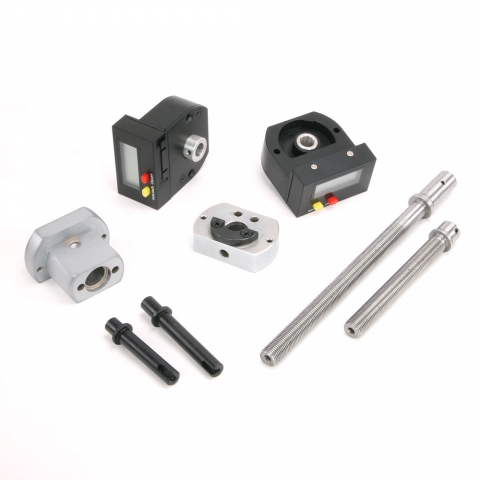

Digital Position Readout, 2-Axis 20 TPI Mini Lathe
- This DRO kit is an upgrade for the LMS 4200 7x12 mini lathe
- Mounts right on the cross slide and compound rest to give you accurate depth-of-cut readings
- Resolution: 0.0001", accuracy: 0.001"
- Buttons for on/off, zero, and inch/mm
- Includes compound rest bottom and cross slide nut (not shown)
Part Number: 5567
Weight: 2.48 lb
Weight: 2.48 lb
Price: $219.95
This product is currently backordered.
Estimated availability:
29-Nov-2024
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
Share this page:
http://lmscnc.com/5567
http://lmscnc.com/5567
This DRO kit is an upgrade for the LMS 4200 7x12 mini lathe. This kit also fits other 20 TPI mini lathes as sold by Micro Mark.
| Repeatability | 0.00050" (0.0127 mm) |
| Resolution | 0.00010" (0.0025 mm) |
| Accuracy | 0.00100" (0.0254 mm) |
| Technology | Rotary encoder |
| Clear to Zero | Yes |
| Inch/mm Display | Yes |
| Made In | China |
 |
DRO on Compound and Cross Slide |
 |
DRO Display Installed |
 |
DRO readout in millimeters |
 |
DRO readout in inches |
| Description | Qty | |
|---|---|---|
|
Compound Rest Bottom, Mini Lathe, Drilled, P/N 1677 | 1 |
|
Digital Position Readout, 2-Axis Mini Lathe, P/N 5675 | 1 |
|
Nut, Cross Slide Feed, P/N 1203 | 1 |
Compatibility
This product works with these LittleMachineShop.com products:
- 4292 Battery, CR2032 Lithium
- 5673 Readout, DRO
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| 190 | LittleMachineShop.com 4200 HiTorque Mini Lathe - 7x12 |
