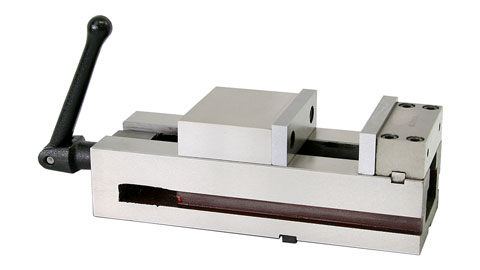

Vise, 3" CNC Mill

Lock down type
Compact size allows multiple vises on CNC mill table
Flatness of all sides within 0.001"
Mount upright, or on left or right sides
Sides parallel within 0.0005" in 4"

Part Number: 5590
Weight: 12.7 lb

Price: $209.95

Share this page:
http://lmscnc.com/5590

Description
Specifications

Description

This vise is designed for CNC milling machines where a swivel base is never required. The compact size allows you to mount multiple vises on the CNC mill table so you can machine several items in one setup.

The vise closes with up to 3000 lbs. of clamping force.

The vise is 3.15" (90mm) wide, 9.06" (230mm) long, and 2.76" (70mm) tall. The jaws are 0.944" (24mm) deep and open 2.95" (75mm).

Specifications

Specifications
Jaw Depth	0.944" (23.98 mm)
Maximum Jaw Opening	2.95" (74.9 mm)
Weight	12.7 lbs (5.8 kg)
Height	2.76" (70.1 mm)
Length	9.06" (230.1 mm)
Width	3.15" (80.0 mm)
