Tapping Chuck, 33JT
- Tap #10 to 1/2" (M3 - M12) threads
- Quick loading and unloading
- Adjustable clamping range
- Good stability, high precision
Part Number: 5591
Weight: 2.29 lb
Weight: 2.29 lb
Price: $69.95
Share this page:
http://lmscnc.com/5591
http://lmscnc.com/5591
Turn your bench mill, or lathe into a tapping machine. Tap #10 to 1/2" (M3 - M12) threads.
This is not a reversible tapping head. You must reverse the spindle to extract the tap.
Mounts to 33 Jacobs taper arbor .
Length 2.87" (73mm)
Diameter: 1.89"(48mm)
Chris' Tips |

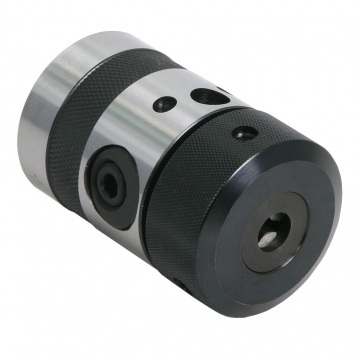

Tapping chuck, front view. |
 |

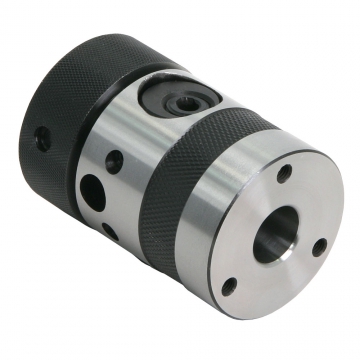

33JT tapping chuck, back view. |
 |

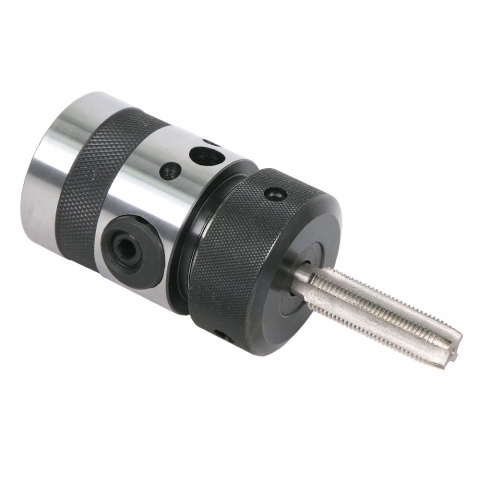

Tapping Chuck with tap installed. (Tap not included.) |
Compatibility
This product works with these LittleMachineShop.com products:
- 3543 Arbor, Drill Chuck 0MT Standard to 33JT
- 5524 Arbor, Drill Chuck 1/2" Straight to 33JT
- 1894 Arbor, Drill Chuck 1MT Tang to 33JT
- 1883 Arbor, Drill Chuck 2MT Drawbar to 33JT
- 1804 Arbor, Drill Chuck 2MT Short to 33JT
- 2955 Arbor, Drill Chuck 2MT Standard to 33JT
- 1190 Arbor, Drill Chuck 2MT Tang to 33JT
- 1806 Arbor, Drill Chuck 3MT Drawbar to 33JT
- 1192 Arbor, Drill Chuck 3MT Tang to 33JT
- 1676 Arbor, Drill Chuck R8 to 33JT
- 2436 Arbor, Drill Chuck, Tormach TTS to 33JT
