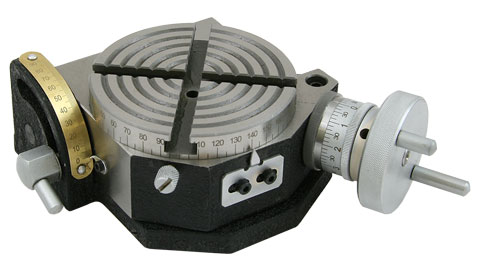

Rotary Table, 4" Tilting, Standard
- Tilting table 0° to 90°
- 4" diameter table rotates 360°
- 1:36 ratio or 10° per handwheel revolution
- Scale reads to 15 minutes
- Low profile - 66mm (2.60") tall
Part Number: 5604
Weight: 12.0 lb
Weight: 12.0 lb
Price: $139.95
Share this page:
http://lmscnc.com/5604
http://lmscnc.com/5604
Affordably priced rotary table suitable for bolt patterns, arched slots, cutting out flywheels and other medium precision jobs. The small size of the table is good for small milling machines. The table has a low profile of 66mm (2.60") in the horizontal position.
This precision ground graded cast iron table is graduated for a full 360°. The handwheel utilizes a 1:36 ratio resulting in 10° per handwheel revolution. Table tilts from 0° to 90° and locks into place.
Table comes with two clamping studs, two 45mm clamping bars and two t-nuts.
| Ratio | 36:1 |
| Table Diameter | 4.02" (102.0 mm) |
| Height (Mounted Horizontal) | 2.60" (66.0 mm) |
| Body Length | 8.27" (210.0 mm) |
| Body Width | 8.27" (210.0 mm) |
| Center Height (Mounted Vertically) | 3.03" (77.0 mm) |
| T-Slot Width | 0.31" (8.0 mm) |
| Minimum Vernier Reading | 10" |
| Flatness of Table Surface (Concave) | 0.0008" (0.020 mm) |
| Parallelism of Table Surface to Base | 0.0008" (0.020 mm) |
| Squareness of Table Surface to Base | 0.0008" (0.020 mm) |
| Runout of Table Surface | 0.0008" (0.020 mm) |
| Squareness of Table Surface to Angle Face Slot | 0.0008" (0.020 mm) |
| Maximum Spacing Error | 30" |
Compatibility
This product works with these LittleMachineShop.com products:
- 1813 Clamping Kit, 8 mm T-Slot, 12-Piece
- 1972 Clamping Kit, 8 mm T-Slot, 24-Piece
- 1111 Collet Chuck, Rotary Table, ER-25, 80 mm Diameter
- 1112 Collet Chuck, Rotary Table, ER-32, 80 mm Diameter
- 5630 Tailstock for 3" & 4" Rotary Tables
