Stand Cabinet, 7x16 Mini Lathe

Stand Cabinet, 7x16 Mini Lathe
  • Metal stand and chip tray for mini lathe
  • Single column two door design
  • 34.7" x 13.9" x 35.3" (882 mm x 352 mm x 896 mm)

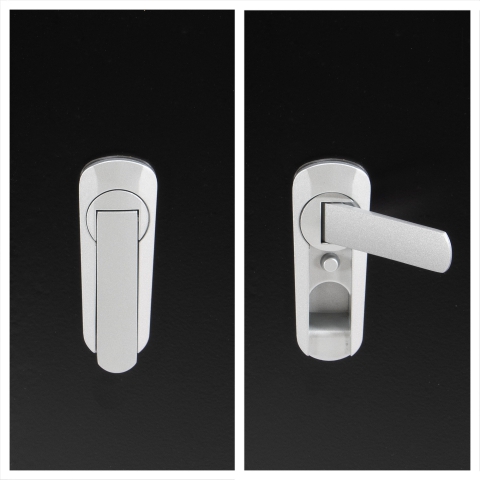

  • Cabinet for storage with locking door
  • Fits SIEG SC2 and HiTorque 7x16 mini lathes
Part Number: 5626
Weight: 87.2 lb

Price: $299.95

In stock
Quantity:


PayPal Credit

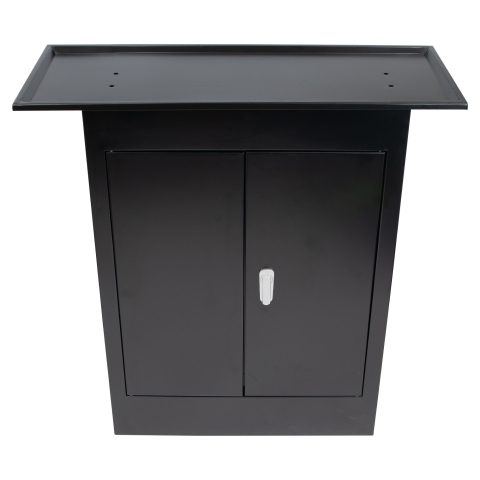

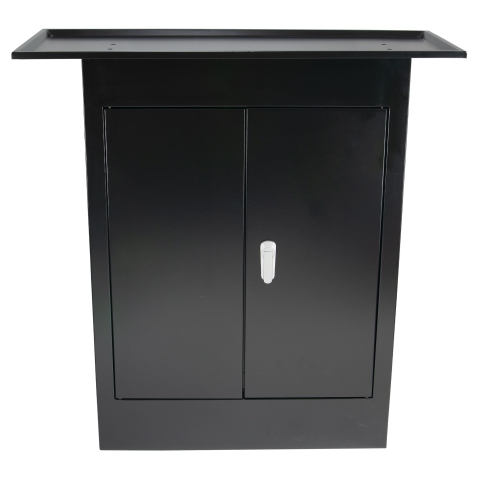

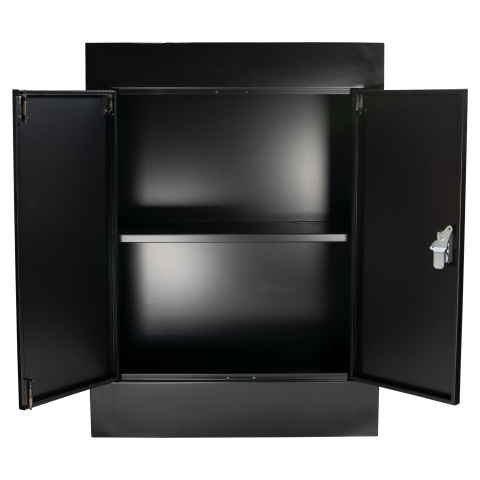

This single column two door design black stand comes with a built in cabinet and is suitable for all SIEG SC3 7x16 and HiTorque 7x16 mini lathes. The cabinet has one shelf.

The tray dimensions are 34.7" x 13.9" x 0.63" (882 mm x 352 mm x 16 mm). Predrilled holes in tray are sized for securing compatible 7x16 mini lathes.

This chip tray has been upgraded to be more robust than the trays that ship with most mini lathes.

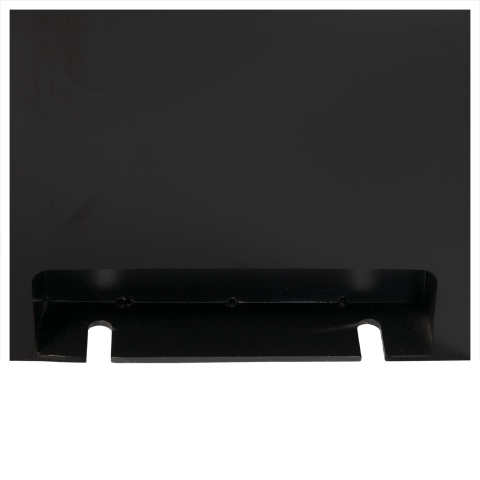

The stand has bolting slots for securing the stand to a floor for additional stability and safety.

See the Compatibility tab for machines that work with this product.

Specifications
Height with Tray 35.3" (896 mm)
Width with Tray 34.7" (882 mm)
Width of Cabinet 25.6" (650 mm)
Depth with Tray 13.9" (352 mm)
Depth of Cabinet 11.8" (300 mm)
Tray Usable Width (Flat Area) 32.7" (830 mm)
Tray Usable Depth (Flat Area) 11.8" (300 mm)
Cabinet Usable Width 25.5" (648 mm)
Cabinet Top Shelf Usable Depth 9.8" (250 mm)
Cabinet Top Shelf Usable Heigth 16.4" (417 mm)
Cabinet Bottom Shelf Usable Depth 9.1" (230 mm)
Cabinet Bottom Shelf Usable Height 15.0" (380 mm)
Bolt Down Slots Distance On Center 6.5" (165 mm)
Bolt Down Slots Width 0.5" (13 mm)
Bolt Down Slots Depth 1.4" (35 mm)

Compatibility

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

  •   Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  •   LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
