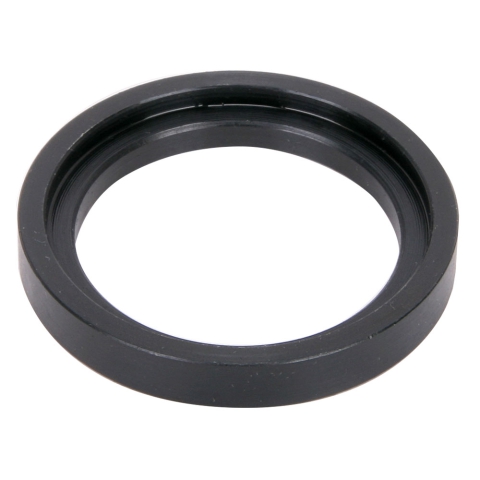

Retainer Ring, Roller Bearing, Mill Spindle Bearing, Upper

Steel roller bearing retaining ring
Upper side of spindle bearing
Outer Diameter - 35.5mm
Shaft Diameter - 48mm

Part Number: 5708
Weight: 0.07 lb

Price: $4.88

Share this page:
http://lmscnc.com/5708

Steel outer retaining ring for bearings. This ring fits firmly on the shaft and sits against the roller bearing serving to both retain position as well as protect the bearing from outside material.

The ring is made of steel.

See Used On tab for reference to machines using this part and the corresponding drawing number.

See Specifications Tab for more information on this product.

Specifications

Specifications
Outer Diameter	1.398" (35.50 mm)
Shaft Diameter	1.890" (48.00 mm)
Thickness Outer Edge	0.276" (7.00 mm)
Thickness Shelf	0.138" (3.50 mm)
Shelf Recess Width	0.118" (3.00 mm)

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
5	BusyBee CX611 Craftex Small Mill Grizzly G0619 Grizzly Small Mill Various SX3 SIEG Small Mill Travers Tools OT2225SX3 OTMT Small Mill
A008	LittleMachineShop.com 6700 HiTorque Large Bench Mill LittleMachineShop.com 6750 HiTorque Large Bench Mill Various SX3.5-US SIEG Large Bench Mill LittleMachineShop.com 6770 HiTorque Large Bench Mill
A31	LittleMachineShop.com 5500 HiTorque Bench Mill Various SX2.7-US SIEG Bench Mill LittleMachineShop.com 5520 HiTorque Bench Mill LittleMachineShop.com 6500 HiTorque Bench Mill LittleMachineShop.com 5550 HiTorque Bench Mill Various SX2.7L-US SIEG Bench Mill LittleMachineShop.com 6550 HiTorque Bench Mill LittleMachineShop.com 6570 HiTorque Bench Mill

Click your model to see the complete parts list.
