Feed Screw, Z-Axis Bench Mill

Part Number: 5743
Weight: 1.11 lb

Price: $17.51

Share this page:
http://lmscnc.com/5743

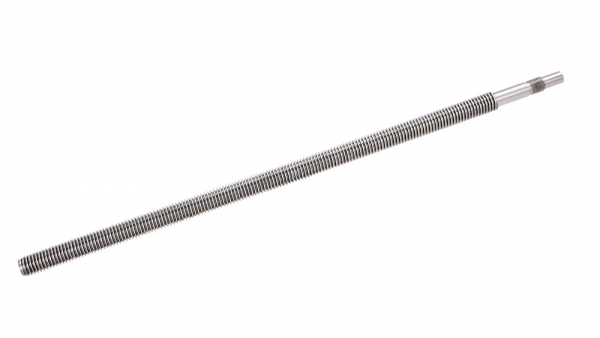

Z-Axis feed screw found on the HiTorque bench mills and SIEG SX2.7 bench mills.

The feed screw advances 0.100" (2.54 mm) per rotation.

See Used On tab for reference to machines using this part and the corresponding drawing number.

In your instruction manual, this part appears on the parts list as:

Item No	Models
B02	LittleMachineShop.com 5500 HiTorque Bench Mill Various SX2.7-US SIEG Bench Mill LittleMachineShop.com 5520 HiTorque Bench Mill LittleMachineShop.com 6500 HiTorque Bench Mill LittleMachineShop.com 5550 HiTorque Bench Mill Various SX2.7L-US SIEG Bench Mill LittleMachineShop.com 6550 HiTorque Bench Mill

Click your model to see the complete parts list.
