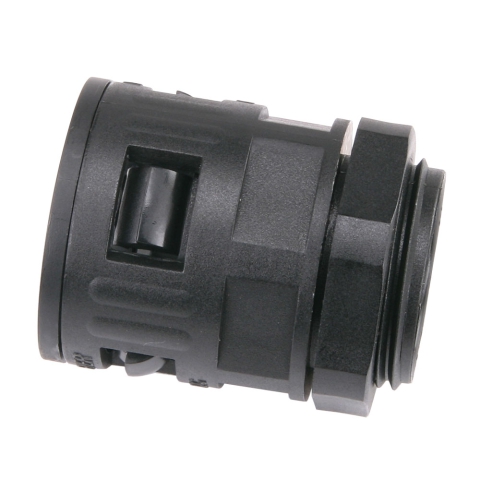

Connector, Quick, Flexible Conduit, 28.5 mm
- Flexible tube quick connector, fits 28.5 mm tubing
- Thread size M30 x 2.0
- Threaded stem is 13 mm, overall length 47 mm
- Easy to install
- Made of flame-retardant Polyamide, black
Part Number: 5777
Weight: 0.04 lb
Weight: 0.04 lb
Price: $6.72
Share this page:
http://lmscnc.com/5777
http://lmscnc.com/5777
Flexible conduit connector for HiTorque Bench Mill power line.
Quick screw connector. Thread size M20x1.5, fits tubing size AD28.5. Threaded stem is 13 mm, overall length 47 mm. Wrench size 34 mm.
Easy installation, no need for welding, gluing or tools, resulting in a good seal that is safe and reliable. Can be quickly disassembled or reused.
Made of flame-retardant Polyamide, black. Temperature range is -40°C to 100°C. Self-extinguishing, free of halogen, phosphor and cadmium, passed RoHS. Protection degree is IP66.
See Used On tab for reference to machines using this part and the corresponding drawing number.
| Model | WQG-M30B/AD28.5 |
| Thread Dimensions | M30×2.0 |
| Outside Dimensions | 1.46" (37.0 mm) |
| Internal Diameter Threaded Section | 0.93" (23.5 mm) |
| Fits Tubing Size | AD28.5 |
| Thread Length | 0.51" (13.0 mm) |
| Total Length | 1.85" (47.0 mm) |
In your instruction manual, this part appears on the parts list as:
