Rotary Table, 4" Digital Readout with Tailstock & Dividing Plate

Complete Rotary table and indexing solution
Includes 4" rotary table, diving plate, tailstock
Lock down clamps and t-slot nuts also included
Tailstock is adjustable in height
2 Morse taper center hole

Part Number: 5852
Weight: 24.2 lb

$589.54 Value Price

Purchased individually $549.54

This product is currently backordered.

Estimated availability:
29-Nov-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/5852

Description

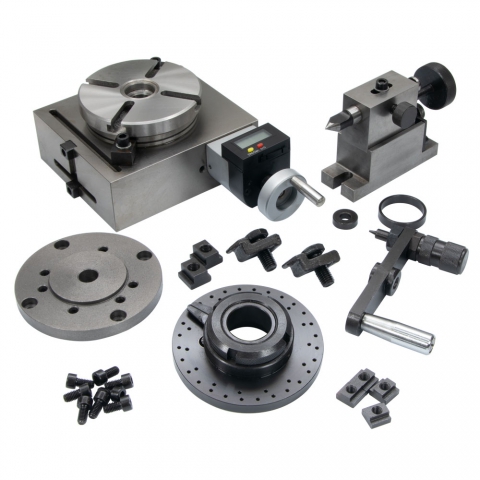

This kit provides a complete rotary table and indexing solution.

This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360° scale. A micro collar graduated to one minute with a fifteen second accuracy vernier scale is provided. The rotary table has lock down clamps.

The tailstock is adjustable in height.

The dividing plate set consists of one plate with two sets of holes. One circle has 15 holes and the other has 28 holes. This lets you divide a circle into 1/3 degree increments, among many other combinations.

The lathe chuck adapter lets you mount a 3" 3- or 4-jaw lathe chuck on a rotary table with a 2 Morse taper center hole. There is an alignment boss that projects into the tapered hole for quick alignment. It is clamped to the rotary table with T-slot nuts that are included.

Chris' Tips

Chris' Tips
The precision rotary table works with this tail stock, this dividing plate set and this clamping kit.

We provide rotary table instructions and dividing plate instructions.

Here is some more information about using a rotary table written by one of our customers.

Contents

This product contains the following items:
	Description	Qty
	Dividing Plate Set for 4" Rotary Table, P/N 1811	1
	Key, 3x8 mm, P/N 1357	1
	Nut, M8 Nylon Insert Lock, P/N 2516	1
	Rotary Table, 4" - Precision (Digital Readout), P/N 2420	1
	Tailstock for 4" Rotary Table, P/N 1812	1
	Washer, M8 Flat, P/N 1586	1
