Electronic Digital Caliper, 8" Fractions IP67

Range: 0-8" (0-200 mm)
Accuracy: 0.0015"/8"
Resolution: 0.0005" / 0.01mm / 64th
IP67: Dust tight, temporarily immersible
Operating Environment: 0-40°c

Part Number: 5865
Weight: 1.17 lb

Price: $74.95

Share this page:
http://lmscnc.com/5865

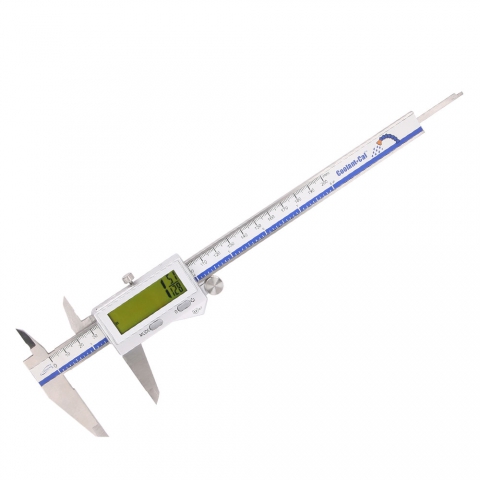

This 8" electronic digital caliper has a large display and easily switches from inches (decimal) to fractions to metric measurements. The caliper has an easy to read large display LCD. The hardened stainless steel construction allow for smooth movement and a high measure speed. The international Protection Rating of this caliper is IP67 (protected from immersion between 15 centimetres and 1 metre in depth, limited ingress protection). The caliper has an auto shut-off and comes with a fitted case.

Chris' Tips

Chris' Tips
Here are some tips on using calipers.

What is the difference between accuracy and resolution?
Accuracy—indicates how close a measured value is to the true quantity of what is being measured.
Resolution—is the smallest increment the system can display or measure. It's one division on a dial, or the smallest increment of the righmost digit on a digital display.

Specifications

Specifications
Range	0" - 8" (0 mm - 203 mm)
Resolution	0.0005" (0.013 mm)
Accuracy	0.0015" (0.038 mm)
Clear to Zero	Yes
Inch/mm Display	Yes
Fraction Display	Yes
International Protection Rating	IP67
Storage Temperature	0-40°c
Operating Environment	0-40°c

Photos

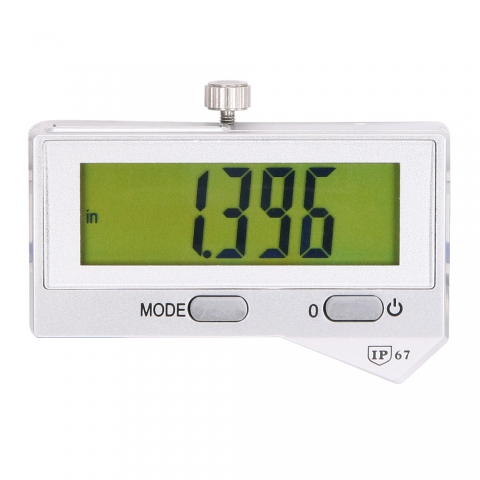

	Decimal Inch Display

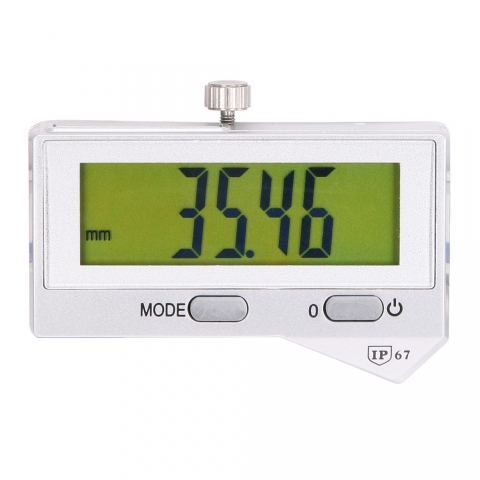

	Metric Display

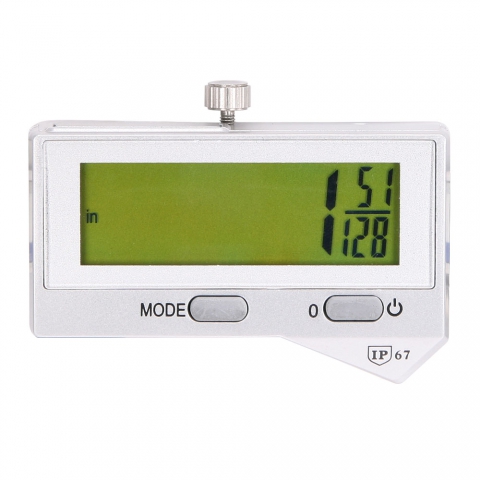

	Fractions Display

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

4292 Battery, CR2032 Lithium
