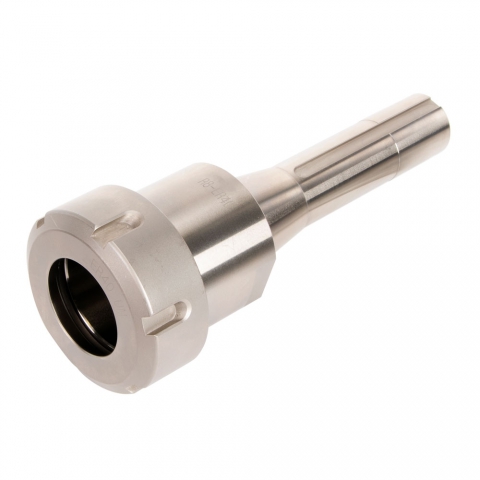

Collet Chuck, ER-40, R8, Professional Grade

R8 to ER-40 collet chuck
Made of 20CrMnTi alloy steel
Electrolysis nickel coating
Drawbar thread: R8 - 7/16"-20
Max. RPM: 8,000, runout is 0 .0002"

Part Number: 5883
Weight: 2.46 lb

Price: $99.95

This product is currently backordered.

Estimated availability:
16-Nov-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/5883

Description
Chris' Tips

Description

R8 to ER-40 professional grade collet chuck. Premium 20CrMnTi alloy steel hardened and all ground body for extended tool life. Has a superior finish (electrolysis nickel coating).

The maximum RPM is 8,000 and the maximum runout is 0.0002" (0.0051 mm). The R8 drawbar thread is 7/16"-20.

ER-40 collets have a range of 1/8" to 1" (3.0 mm to 26.0 mm).

Spanner wrench is not included. See related products if you need a wrench to fit this collet chuck.

*Collet must be assembled into a collet chuck nut before inserting into the collet chuck.

Chris' Tips

Chris' Tips
With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.
