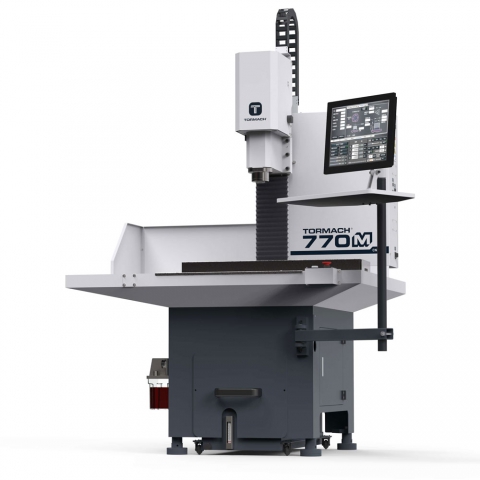

Milling Machine CNC, Tormach 770M Starter Package
- Tormach 770M 3-Axis CNC Mill and Stand
- PathPilot® Controller and Control System
- 10,000 RPM R8 Spindle
- Travel: 14" x 7.5" x 13.2" (X, Y, Z-Axis)
- TTS CNC Operator set and 5" CNC Vise
Additionally, the 770M has numerous add-on accessories such as an automatic tool changer (not included in starter package) which make the 770M ideal for short-run production jobs.
The 77M utilizes the PathPilot® control software which is user-friendly, supports up to 4-axis of continuous machining, industry standard G-code compliance and built-in Dropbox™ support for seamlessly transferring programs

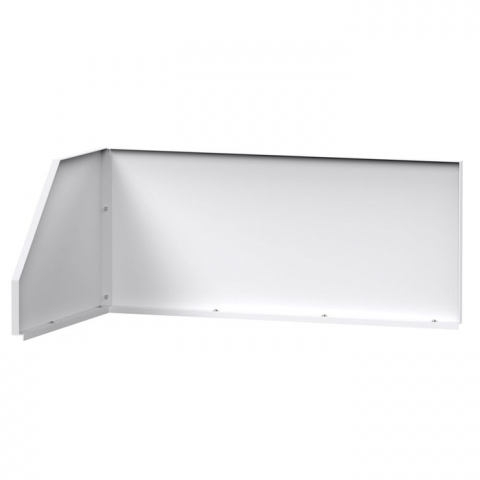

This starter package includes the Tormach 770M Compact 3-Axis CNC mill with PathPilot® controller, stand, Chip Tray, Manual Oil Pump, controller arm, lifting bar, backsplash kit, 5" CNC vise, TTS CNC operator set with Tormach Tool Assistant, standard LCD monitor, waterproof mini keyboard, waterproof mouse, Jog Shuttle Controller, and 1-gallon machine way oil.
**NOTE - ADDITIONAL CHARGES WILL APPLY** - This machine ships directly from a Tormach warehouse. Freight charges and sales tax will be calcualted by Tormach and will be added to your order prior to shipping. See Shipping Tab for full details.
|Table Size||26.0" x 8.0" (660 mm x 203 mm)|
|T-Slots||3 slots 0.625" (15.88 mm) wide|
|X-Axis Travel||14.0" (356 mm)|
|Y-Axis Travel||7.50" (190.5 mm)|
|Z-Axis Travel||13.2" (337 mm)|
|Throat||8.6" (218 mm)|
|Spindle Motor||1.5 hp (1119 Watts)|
|Spindle Speed||300 - 10000 RPM|
|Maximum Feed Rate x- and Y-Axis||135 in/min (3429 mm/min)|
|Maximum Feed Rate Z-Axis||110 in/min (2794 mm/min)|
|Power Requirements||115 V 60 Hz 15 Amps|
|Typical System Footprint (Incl. Stand)||56" x 48" x 88" (1422 mm x 1219 mm x 2235 mm)|
|Machine Weight||826 lbs (375 kg)|
|Shipping Weight||1468 lbs (667 kg)|
|PCNC 770M Package, Alternate View|
|PCNC 770M Base Machine|

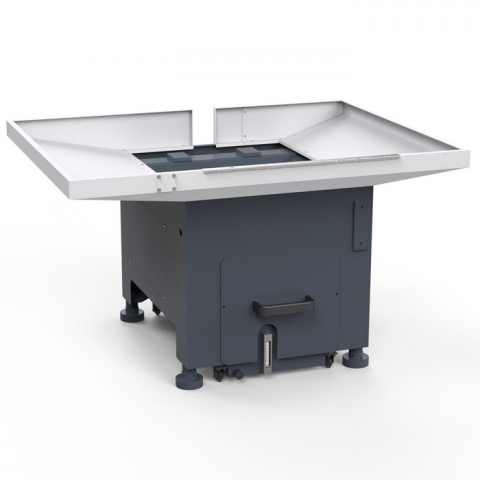

|Chip Tray and Coolant Tank|
|5" CNC Vise|
|TTS CNC Operator Set (Inch)|
This machine ships directly from a Tormach warehouse. It might be a day or two longer before it ships, and you will receive it in a separate package from other items on your order. You might receive this item a few days before or a few days after you receive items shipped from our warehouse.
**NOTE - ADDITIONAL CHARGES WILL APPLY** - Tormach calculates freight charges and sales tax once an order is made, and those fees will be added to your order prior to shipping. To receive an exact quote on products, tax, and shipping, please choose the “Quote” option at checkout. Upon receipt, we will contact Tormach and create you a written quote, which will be emailed to you within a couple of days of your inquiry. Quotes are good for 30 days from time of issuance. Bypassing the quote process will result in an incorrect billing to your credit card and your order will not process until the full fees are paid.
