Saddle, HiTorque Bench Mill Deluxe, Long Table

Deluxe bench mill saddle
Supports the long table
Moves along the Y-Axis
Fits HiTorque deluxe bench mill with the long table
Fits SIEG SX2.7L mills

Part Number: 6006
Weight: 10.8 lb

Price: $99.95

Share this page:
http://lmscnc.com/6006

Mill saddle for the HiTorque deluxe bench mill with the long table. The saddle rides on the base along the Y-Axis. The mill table moves left to right along the X-Axis on top of the saddle.

See Used On tab for reference to machines using this part and the corresponding drawing number.

Specifications

Specifications
Width	6.30" (160.0 mm)
Length	7.09" (180.0 mm)

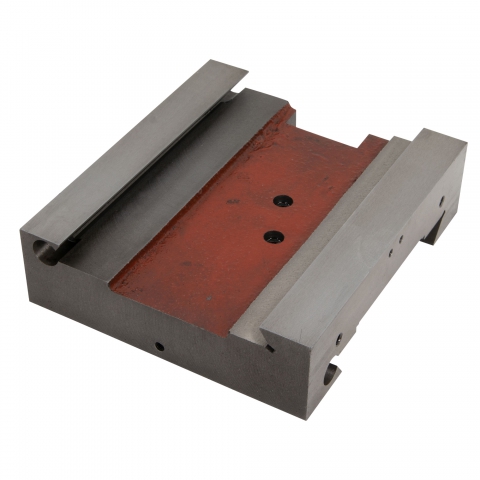

Photos

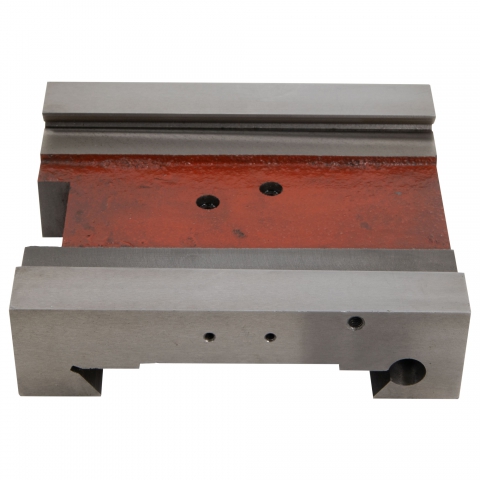

	Reverse View

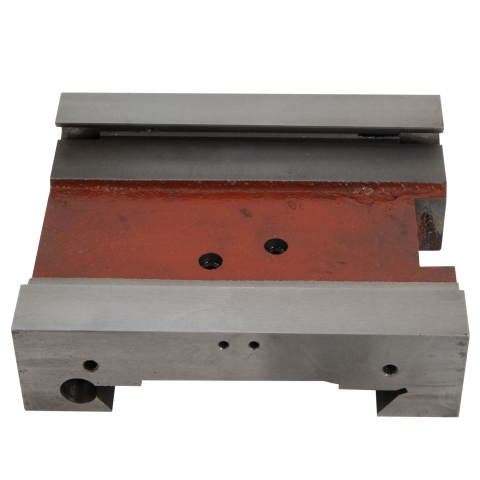

	End View Showing Gib Opening

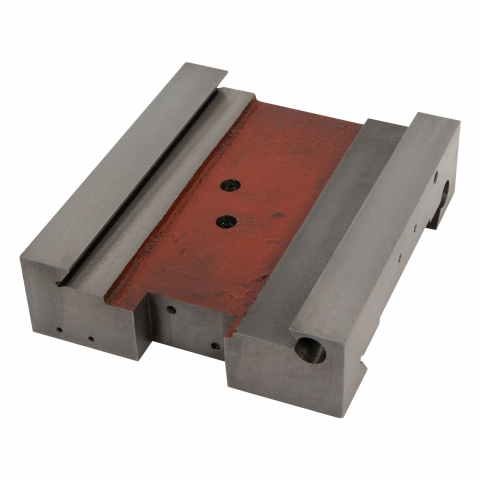

	Reverse End View Showing Gib Opening

Compatibility

Compatibility

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

LittleMachineShop.com 6500 HiTorque Bench Mill

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
C27	LittleMachineShop.com 5550 HiTorque Bench Mill Various SX2.7L-US SIEG Bench Mill LittleMachineShop.com 6550 HiTorque Bench Mill LittleMachineShop.com 6570 HiTorque Bench Mill

Click your model to see the complete parts list.
