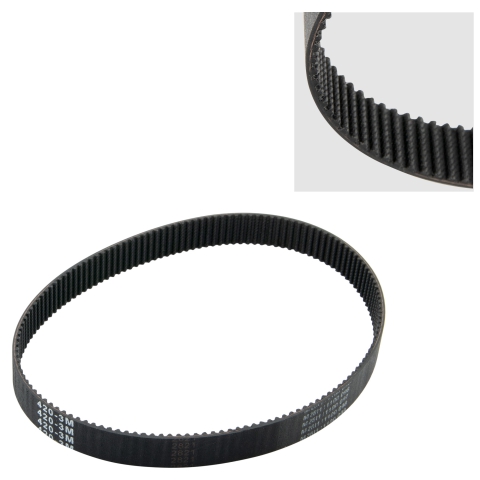

Belt, Timing, HiTorque Large Bench Mill, Low Speed

Timing belt, low speed, high torque
For speeds from 100 - 1800 RPM
HiTorque large bench mill
Fits SIEG SX3.5 bench mills
Belt classification: 3M-420-15

Part Number: 6013
Weight: 0.02 lb

Price: $15.95

Share this page:
http://lmscnc.com/6013

Timing belt for the HiTorque large bench mill and SIEG SX3.5 bench mills. This is the low speed belt for spindle speeds between 100 - 1800 RPM. It allows for more torque at the lower speeds. For speeds between 280 - 5000 RPM, use the poly-v belt.

See Used On tab for reference to machines using this part and the corresponding drawing number.

This belt is marked 3M-420 and is 15 mm wide.

Specifications

Specifications
Desigination	420-3M-15
Belt Length	16.5" (420 mm)
Belt Width	0.6" (15 mm)
Teeth Distance to Center	0.1" (3 mm)
Number of Teeth	140

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
A035	LittleMachineShop.com 6700 HiTorque Large Bench Mill LittleMachineShop.com 6750 HiTorque Large Bench Mill Various SX3.5-US SIEG Large Bench Mill LittleMachineShop.com 6770 HiTorque Large Bench Mill

Click your model to see the complete parts list.
