USB Port, HiTorque Large Bench Mills and Lathes with DRO
- USB 2.0 Port for DRO readers
- Fits HiTorque deluxe large bench mills and lathes with DRO
- Fits SIEG SX3.5L large bench mills and SC4 bench lathes
- Dual USB port on one end, USB connection to power on other end

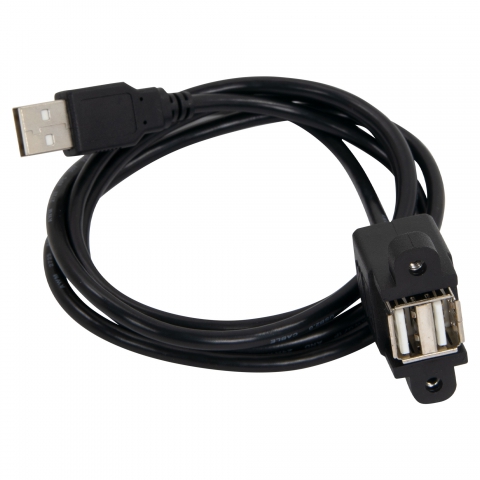

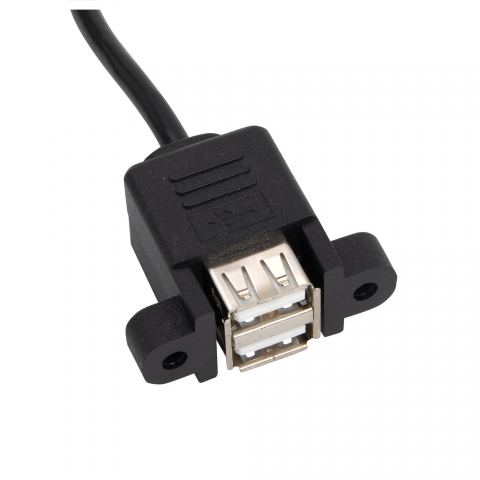

USB 2.0 port for the DRO readers on the deluxe HiTorque large bench mills and SIEG SX3.5L large bench mills with DRO and deluxe HiTorque bench lathes (SIEG SC4). One end of the part has a standard USB terminal to attach to the USB power supply while the other end has a dual USB terminal which is available externally on the back of the control box. The length of the cable between terminal ends is approximately 46". The dual terminal is mounted with two M3x10 screws, not included.
See Used On tab for reference to machines using this part and the corresponding drawing number.
USB Ports |
In your instruction manual, this part appears on the parts list as:
