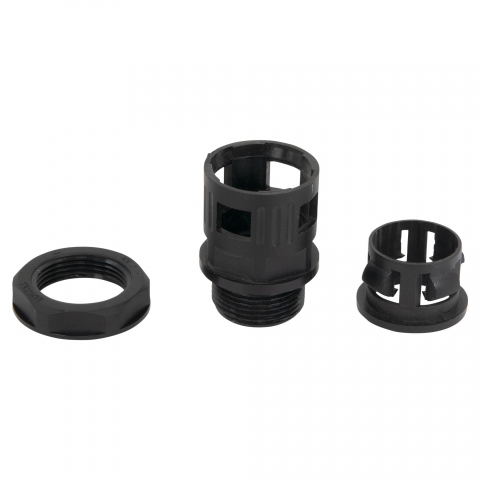

Connector, Quick, Flexible Conduit, 21.2 mm

Flexible conduit connector for HiTorque Bench Mill power line.

Quick screw connector. Thread size M25x1.5, fits tubing size AD21.2. Threaded stem is 13 mm, overall length 45 mm. Wrench size 27 mm.

Easy installation, no need for welding, gluing or tools, resulting in a good seal that is safe and reliable. Can be quickly disassembled or reused.

Made of flame-retardant Polyamide, black. Temperature range is -40°C to 100°C.

See Used On tab for reference to machines using this part and the corresponding drawing number.
