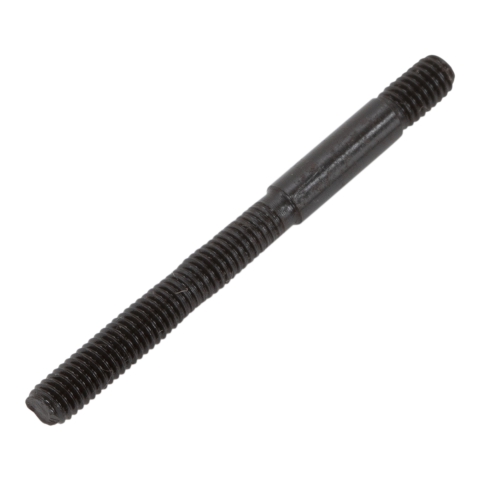

Stud M3x34.5, DRO Read Head Mounting

Threaded stud
Attaches DRO read head to cross slide
Fits HiTorque deluxe large bench lathe
Fits SIEG SC4 bench lathes with DRO
Size M3x34.5

Part Number: 6147
Weight: 0.01 lb

Price: $3.95

Share this page:
https://littlemachineshop.com/6147

Connection stud with threading on both ends to secure the DRO read head to the cross slide. As the cross slide is moved along the Y-Axis, the DRO scale moves along the read head.

The size is 3x34.5 mm.

See Used On tab for reference to machines using this part and the corresponding drawing number.

Chris' Tips

Chris' Tips
Double ended studs that conform to DIN 938 have two external threaded sections divided by an unthreaded section.

The short threaded section is fixed in length of 1 x diameter. The short end is typicalled installed into a tapped hole or fitting. The length of the long end will vary depending on the length of the stud.

Both ends are designed for internally threaded fasteners such as a nut or a bracket.

The nominal length of the stud is the calculated by adding the length of the unthreaded section plus the long threaded section.

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
11-09	LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20
444	LittleMachineShop.com 7550 HiTorque Bench Lathe - 8.5x20

Click your model to see the complete parts list.
