Bracket, Spindle Lock, Mini Mill

Spindle lock bracket
Fits HiTorque deluxe and SIEG SX2LF mini mills
Length: 3.86" (98.0 mm)
Width: 0.79" (20.0 mm)
Height: 0.98" (25.0 mm)

Part Number: 6276
Weight: 0.66 lb

Price: $24.95

Share this page:
http://lmscnc.com/6276

Main mounting bracket for the mini mill spindle lock. Used on HiTorque mini mills and and SIEG SX2LF mini mills. This bracket supports the main shaft and knob for the mechanism.

See Used On tab for reference to machines using this part and the corresponding drawing number.

Specifications

Specifications
Length	3.86" (98.0 mm)
Width	0.79" (20.0 mm)
Height	0.98" (25.0 mm)

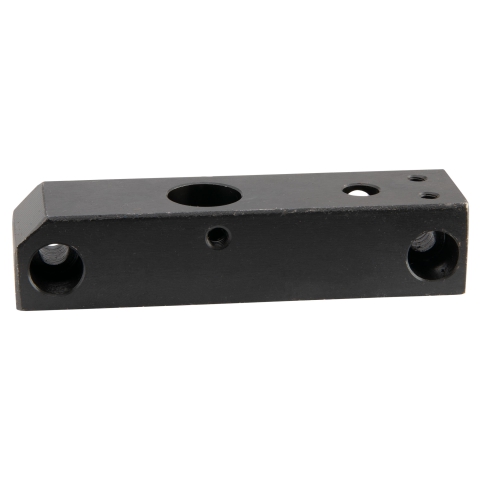

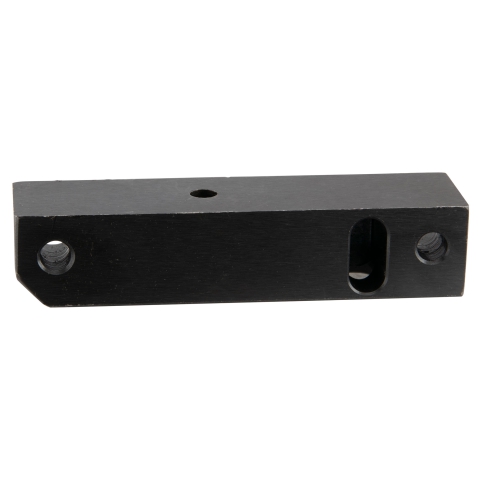

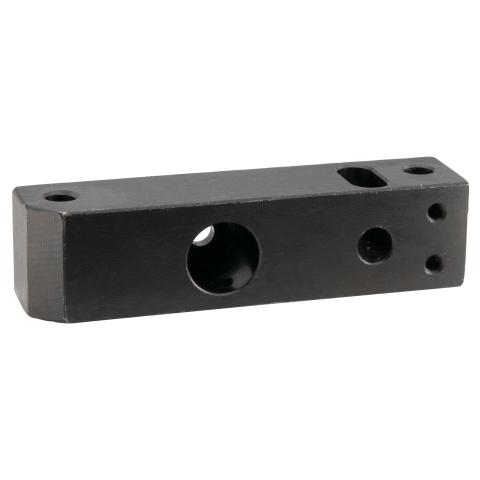

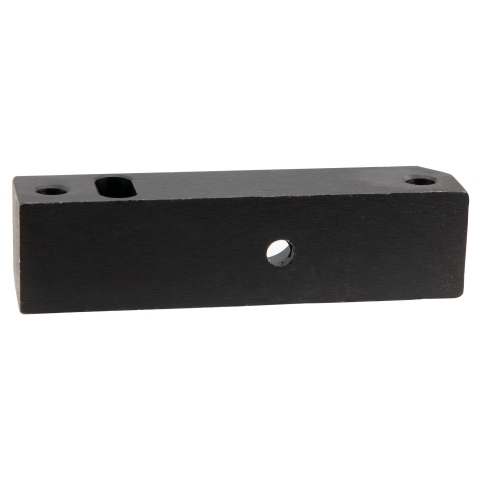

Photos

"Bracket

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
180	LittleMachineShop.com 4190 HiTorque Mini Mill
195	LittleMachineShop.com 6450 HiTorque Mini Mill

Click your model to see the complete parts list.
