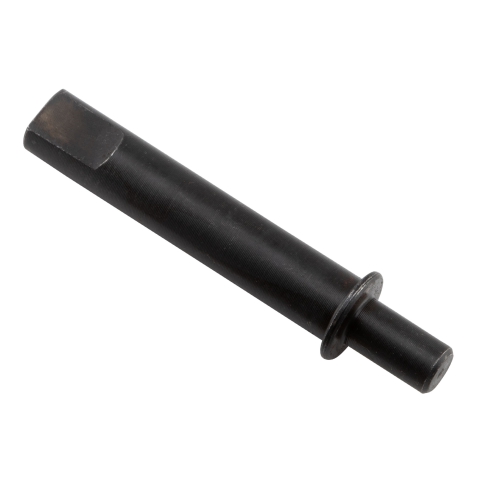

Shaft, Spindle Lock, Mini Mill
- Spindle Lock Shaft
- Main shaft to control the spindle lock mechanism from the knob
- Fits HiTorque mini mills and SIEG SX2LF mini mills
Part Number: 6277
Weight: 0.04 lb
Weight: 0.04 lb
Price: $9.95
Share this page:
http://lmscnc.com/6277
http://lmscnc.com/6277
Spindle lock shaft for the HiTorque deluxe mini mill and SIEG SX2LF mini mills with a spindle lock.
This is the main shaft for the mechanism controlled by the knob to engage or disengage the spindle lock.
See Used On tab for reference to machines using this part and the corresponding drawing number.
| Length | 2.09" (53.0 mm) |
| Shaft Diameter | 0.31" (8.0 mm) |
| Small Length | 1.61" (41.0 mm) |
| Small Shaft Diameter | 0.24" (6.0 mm) |
| Small Shaft Length | 0.43" (11.0 mm) |
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| 184 | LittleMachineShop.com 4190 HiTorque Mini Mill |
| 186 | LittleMachineShop.com 6450 HiTorque Mini Mill |
