Tap Guide, Reversible
- Reversible tap guide
- Spring loaded
- 3/16" diameter pin
- 1/2" knurled shank
- Adjustable spring
Part Number: 6294
Weight: 0.15 lb
Weight: 0.15 lb
Price: $6.95
Share this page:
http://lmscnc.com/6294
http://lmscnc.com/6294
This tap guide helps you start threaded holes straight.

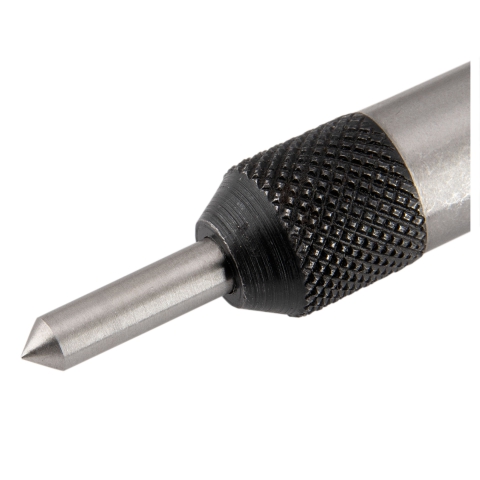

The reversible point is spring loaded to maintain pressure on the tap. One end of the point has a center hole for small taps, while the other end is pointed for larger taps. Tension spring is adjustable. Tap has a 3/16" diameter hardened tension pin.
The 0.50" diameter hardened shank is knurled for easy handling.
Remove the setscrew in the back end to with a 3/16" Allen wrench to reverse the point. (Be careful, the spring is strong and the set screw will pop out and disappear in your shop if you are not careful!)
| Length | 3.3" (83 mm) |
| Diameter | 0.5" (13 mm) |
| Tip Extension | 0.8" (19 mm) |
| Tip Diameter | 0.2" (5 mm) |
| Knurled Section Length | 0.5" (13 mm) |
 |

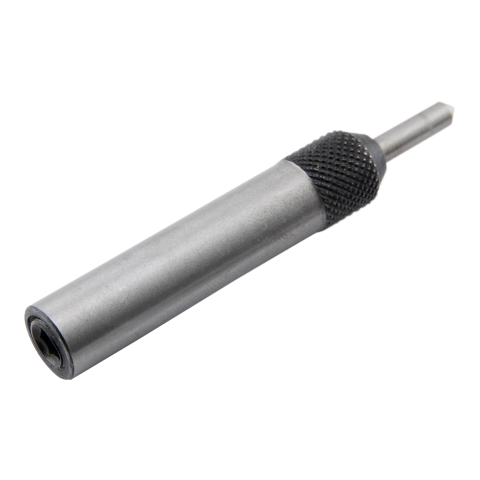

Reverse view |
 |

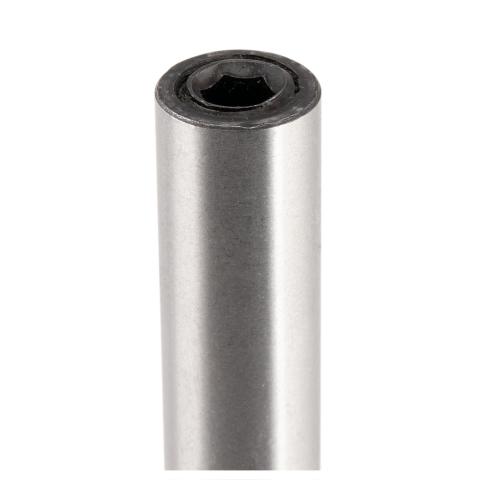

Adjustment screw |
 |

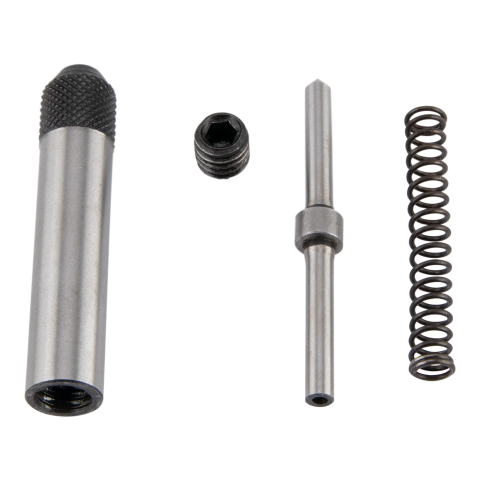

Exploded view |
 |
2MT Bore |
 |

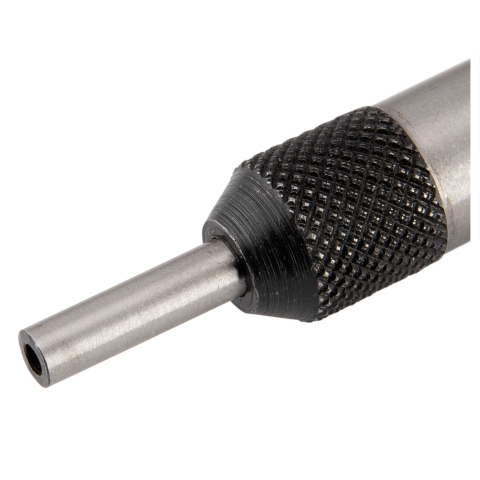

Center hole tip |
