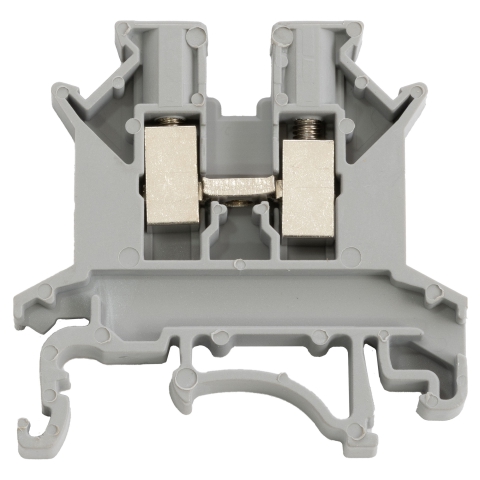

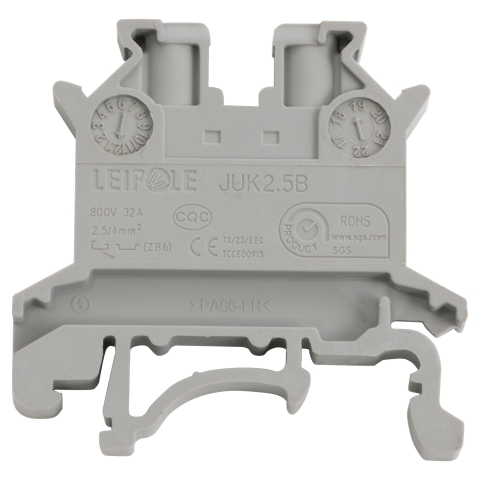

Terminal Block, Lighting System, Large Bench Mill
- Terminal block for large bench mill light
- Connecting capacity from 0.2 to 300 mm²
- Size: T6.2xH42xW42.5
- Rated Current: 32A
- Rated Voltage: 800V
Part Number: 6521
Weight: 0.01 lb
Weight: 0.01 lb
Price: $1.85
Share this page:
https://littlemachineshop.com/6521
https://littlemachineshop.com/6521
Terminal block for the HiTorque Large Bench Mill and SIEG SX3.5 large bench mills light.
See Used On tab for reference to machines using this part and the corresponding drawing number.
| Size | T6.2xH42xW42.5 |
| Rated Current | 32A |
| Rated Voltage | 800V |
| Solid Cross Section (Min) | 0.2mm² |
| Solid Cross Section (Max) | 4mm² |
| Stranded Cross Section(Min) | 0.2mm² |
| Stranded Cross Section(Max) | 2.5mm² |
| Connection Type | Screw connection |
| Din Rail Type | TS 35/7.5 |
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| D49 | LittleMachineShop.com 6770 HiTorque Large Bench Mill |
